Clevis Grab Hook Grade 70.
Made of superior alloy steel, this Clevis Grab Hooks Grade 70 is made specifically for G70 transport chain.
The deep throat opening allows for easy and secure connection with Grade 70 chain.
Clevis Hook is widely used for load securement with tie-down chain.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Alloy Steel |
| Safety Factor | 4:1 |
| Processing | Forged / Quenched and Tempered |
| Surface Finished | Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Can customize according to detailed requirements. |

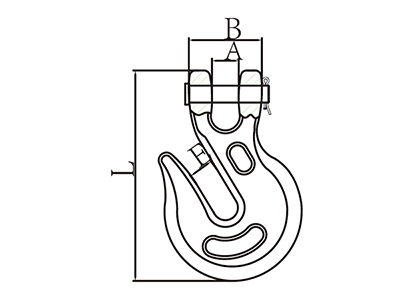

Weight (lbs) | WLL(lbs) | A±0.5(mm) | B±1(mm) | E±0.5(mm) | L±1(mm) |
| G70 | |||||
| 0.36 | 3150 | 8.5 | 25 | 9.2 | 78.5 |
| 0.62 | 4700 | 10 | 30.5 | 11 | 93 |
| 1.00 | 6600 | 13 | 35 | 12.7 | 114.5 |
| 1.5 | 8750 | 17 | 42 | 14.5 | 126 |
| 2.22 | 11300 | 19 | 47 | 17 | 144 |
| 4.41 | 15800 | 23 | 56 | 20 | 177 |
| 6.50 | 24700 | 24 | 66.5 | 24 | 207.5 |
