Clevis Slip Hook with Latch Grade 70 Alloy Steel.
Made of superior alloy steel, this grade 70 clevis slip hook with safety latch is durable and has a wider throat than the grab hook.
The sling hook features a safety latch over the wide throat of the hook to ensure the chain is held in place.
This hook is commonly used with G70 transport chain.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Alloy Steel |
| Safety Factor | 4:1 |
| Processing | Body : Drop Forged / Quenched and Tempered ; Latch : Stamping |
| Surface Finished | Body : Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color; ; Latch : Dacroment / Stainless Steel |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Can customize according to detailed requirements. |

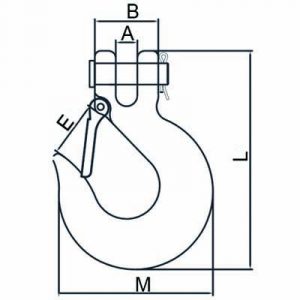

| Weight (lbs) | WLL (lbs) | A±1(mm) | B±1.5(mm) | L±3(mm) | M±2(mm) | E±2(mm) |
| G70 | ||||||
| 0.53 | 3150 | 11.3 | 27 | 103.5 | 70.5 | 21.5 |
| 0.77 | 4700 | 13 | 32 | 117 | 79 | 25.5 |
| 1.26 | 6600 | 15.5 | 40 | 134 | 93.5 | 33.5 |
| 2.25 | 8750 | 15 | 44 | 151.5 | 111 | 36 |
| 3.06 | 11300 | 19 | 48 | 168 | 124.5 | 37.5 |
| 5.18 | 15800 | 18.5 | 58.7 | 200.5 | 143 | 46.5 |
| 12.4 | 24700 | 30 | 81 | 256 | 188 | 58 |
