Clevis Slip Hook Grade 70 A-331.
Made of superior alloy steel, Grade 70 Clevis Slip Hook is specifically designed for Grade 70 Transport Chain.
This slip hook have a wide throat thus can allow rapid attachment and detachment.
It is an effective way to restraint heavy load for transport operations with the benefit of a hook style fitting for all sorts of lashing applications.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Alloy Steel |
| Safety Factor | 4:1 |
| Processing | Drop Forged / Quenched and Tempered |
| Surface Finished | Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Colored |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Can customize according to detailed requirements. |

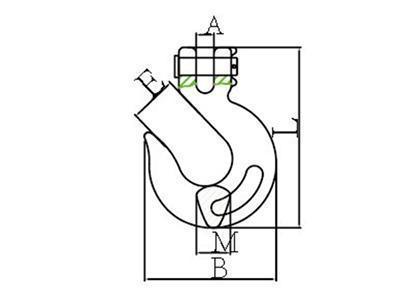

Weight (lbs) | WLL (lbs) | A±0.5(mm) | B±1(mm) | E±0.5(mm) | L±1(mm) |
| G70 | |||||
| 0.55 | 2750 | 11 | 27 | 23.5 | 100 |
| 0.82 | 4300 | 12.5 | 33 | 26 | 114 |
| 1.21 | 5250 | 15 | 39 | 32 | 132.5 |
| 2.09 | 7000 | 17 | 44 | 40 | 147 |
| 2.99 | 9000 | 19 | 48 | 42.5 | 166 |
| 4.85 | 13500 | 18.5 | 58.7 | 51 | 200.5 |
| 11.28 | 19250 | 30.5 | 81 | 64.5 | 257 |
