Clevis Grab Hook Grade 43 High Test.
Also called as High Test Clevis Grab Hook, this hook is made of superior carbon steel.
It is designed specifically to be used with Grade 43 or Grade 30 chain for towing, pulling and securing applications.
*Not suitalbe for overhead lifting.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Carbon Steel |
| Safety Factor | 4:1 |
| Processing | Forged / Quenched and Tempered |
| Surface Finished | Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Can customize according to detailed requirements. |

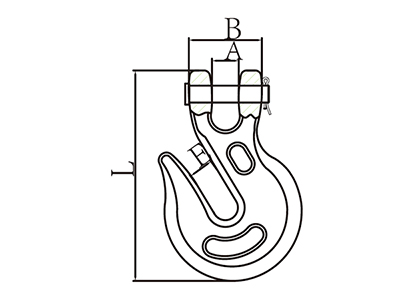

Weight (lbs) | WLL (lbs) | A±0.5 | B±1 | E±0.5 | L±1 |
| G43 | mm | ||||
| 0.36 | 2600 | 8.5 | 25 | 9.2 | 78.5 |
| 0.62 | 3900 | 10 | 30.5 | 11 | 93 |
| 1.00 | 5400 | 13 | 35 | 12.7 | 114.5 |
| 1.5 | 7200 | 17 | 42 | 14.5 | 126 |
| 2.22 | 9200 | 19 | 47 | 17 | 144 |
| 4.41 | 13000 | 23 | 56 | 20 | 177 |
| 6.50 | 20200 | 24 | 66.5 | 24 | 207.5 |
