Copper Ferrule Oval Type.
Also called as wire rope sleeve or ferrule copper, it is made of superior copper.
Copper Ferrule Oval Type can be easily attached to wire rope directly by crimping tool.
Copper ferrule is great for safety in fabrication and application.
| Material | Superior Copper |
| Processing | Machining + Extruded |
| Size | 1mm , 1.5mm , 2mm , 2.5mm , 3mm , 3.5mm , 4mm , 4.5mm , 5mm , 6mm , 6.5mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm , 16mm , 18mm |
| Origin | China |

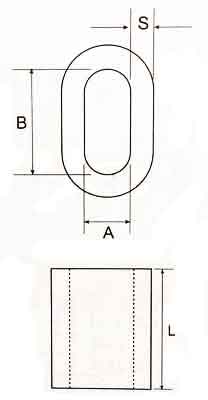

| Ferrule size. | A | B | S | L | Weight (kgs/1000pcs) |
| mm | |||||
| 1 | 1.3 | 2.6 | 0.85 | 5 | 0.32 |
| 1.5 | 1.8 | 3.6 | 1.05 | 6 | 0.72 |
| 2 | 2.4 | 4.8 | 0.85 | 7 | 0.82 |
| 2.5 | 2.7 | 5.4 | 1.1 | 9 | 1.7 |
| 3 | 3.3 | 6.6 | 1.35 | 11 | 2.9 |
| 3.5 | 3.9 | 7.8 | 1.6 | 13 | 4.5 |
| 4 | 4.3 | 8.8 | 1.7 | 14 | 6.2 |
| 4.5 | 5.1 | 10.2 | 1.9 | 16 | 8.9 |
| 5 | 5.6 | 11.2 | 2.1 | 18 | 12.2 |
| 6 | 6.7 | 13.4 | 2.5 | 21 | 20 |
| 6.5 | 6.9 | 14 | 2.7 | 23 | 27 |
| 7 | 7.5 | 15 | 3 | 25 | 32 |
| 8 | 8.5 | 17 | 3.5 | 28 | 47 |
| 9 | 9.9 | 19.8 | 3.7 | 32 | 68 |
| 10 | 10.9 | 21.8 | 4.1 | 35 | 90 |
| 11 | 11.6 | 23.2 | 4.2 | 39 | 122 |
| 12 | 13.2 | 26.4 | 4.9 | 42 | 158 |
| 13 | 14.2 | 28.4 | 5.4 | 46 | 198 |
| 14 | 15.3 | 30.6 | 5.8 | 49 | 243 |
| 16 | 17.5 | 35 | 6.7 | 56 | 366 |
| 18 | 19 | 38 | 7.8 | 63 | 529 |
