Aluminium Wire Rope Ferrule Oval Shape.
Also called as wire rope sleeve, the wire rope sleeve is made of superior aluminium material.
Aluminium Wire Rope Ferrule Oval Shape can be easily attached to wire rope directly by crimping tool.
Aluminium cable ferrule is great for safety in fabrication and application.
| Material | Superior Aluminium Material |
| Processing | Machining + Extruded |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 9/16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/8″ , 1-1/4″ , 1-1/2″ |
| Origin | China |

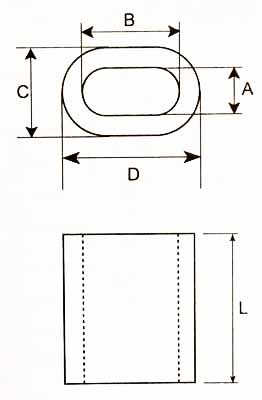

| Size (inch) | A (inch) | B (inch) | C (inch) | D (inch) | L (inch) | Weight |
| lbs/100pcs | ||||||
| 1/4″ | 19/64 | 19/32 | 17/32 | 27/32 | 1 | 2.3 |
| 5/16″ | 3/8 | 3/4 | 21/32 | 11/32 | 1 17/84 | 4.3 |
| 3/8″ | 7/16 | 27/32 | 3/4 | 15/32 | 13/8 | 5.3 |
| 7/16″ | 1/2 | 1 | 29/32 | 1 13/32 | 1 23/32 | 11 |
| 1/2″ | 19/32 | 1 11/64 | 11/32 | 15/8 | 1 15/16 | 16.5 |
| 9/16″ | 23/32 | 13/8 | 17/32 | 1 57/64 | 27/32 | 22 |
| 5/8″ | 3/4 | 11/2 | 13/8 | 23/32 | 2 1/2 | 32 |
| 3/4″ | 53/64 | 1 11/16 | 11/2 | 23/8 | 27/8 | 52 |
| 7/8″ | 61/64 | 17/8 | 1 11/16 | 25/8 | 3 | 67 |
| 1″ | 13/32 | 27/32 | 1 31/32 | 33/32 | 33/4 | 125 |
| 1 1/8″ | 19/32 | 29/16 | 25/16 | 3 19/32 | 49/32 | 172 |
| 1 1/4″ | 1 13/32 | 2 25/32 | 21/2 | 37/8 | 47/16 | 214 |
| 1 1/2″ | 1 21/32 | 3 19/64 | 31/8 | 43/4 | 5 35/64 | 390 |
