Wire Rope Stop Sleeve Aluminum Round Ferrule.
Also called as Wire Stop or Aluminium Stop Button, it is made of superior aluminium.
It can be easily attached to wire rope directly by crimping tool.
Wire Rope Stop Sleeve Aluminum Round Ferrule is great for safety in fabrication and application.
| Material | Superior Aluminium Material |
| Processing | Machining + Extruded |
| Size | 3/64″ , 1/16″ , 5/64″ , 3/32″ , 1/8″ , 5/32″ , 3/16″ , 7/32″ , 1/4″ , 5/16″ , 3/8″ |
| Origin | China |

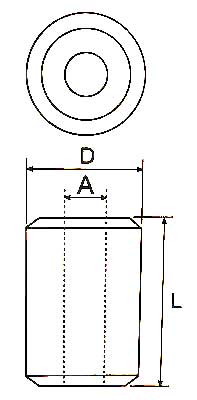

| Size | A(mm) | D(mm) | L(mm) | Weight |
| Inner Dia. | Outer Dia. | Length | kgs/1000pcs | |
| 3/64″ | 1.54 | 4.4 | 4.16 | 0.236 |
| 1/16″ | 1.92 | 6.35 | 4.16 | 0.278 |
| 5/64″ | 2.38 | 6.35 | 4.16 | 0.282 |
| 3/32″ | 2.9 | 8.72 | 7.95 | 1.05 |
| 1/8″ | 3.86 | 8.72 | 7.95 | 0.949 |
| 5/32″ | 4.7 | 11.11 | 8.73 | 1.76 |
| 3/16″ | 5.54 | 11.11 | 8.73 | 1.69 |
| 7/32″ | 6.35 | 11.11 | 8.73 | 1.5 |
| 1/4″ | 7.2 | 17.46 | 17.46 | 9.07 |
| 5/16″ | 9.53 | 17.46 | 17.46 | 7.46 |
| 3/8″ | 11.13 | 17.46 | 17.46 | 6.58 |
