Wire Rope Sleeve Double Barrel Aluminium Ferrule.
Also called as Wire Rope Ferrule Duplex Oval Shape, Hourglass Type.
Made of superior aluminium, it is double barrel which makes for a strong neat join with no danger of the wire crossing over itself within the sleeve.
Aluminium cable ferrule is great for safety in fabrication and application.
Wire rope sleeve duplex oval shape can be easily attached to wire rope directly by crimping tool.
| Material | Superior Aluminium |
| Processing | Machining + Extruded |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 9/16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/8″ , 1-1/4″ , 1-1/2″ |
| Origin | China |

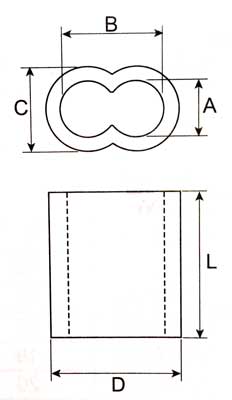

| Size | A | B | C | D | L | Weight | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | kgs/1000pcs |
| 3/64 | 1.19 | 1/16 | 1.59 | 1/8 | 3.18 | 9/64 | 3.6 | 13/64 | 5.2 | 3/8 | 9.5 | 0.276 |
| 1/16 | 1.58 | 5/64 | 1.98 | 5/32 | 3.97 | 11/64 | 4.4 | 1/4 | 6.4 | 3/8 | 9.5 | 0.433 |
| 5/64 | 1.98 | 3/32 | 2.38 | 3/16 | 4.76 | 13/64 | 5.2 | 5/16 | 7.9 | 3/8 | 9.5 | 0.645 |
| 3/32 | 2.38 | 1/8 | 3.18 | 1/4 | 6.35 | 9/32 | 7.1 | 13/32 | 10.3 | 1/2 | 12.7 | 1.45 |
| 1/8 | 3.18 | 5/32 | 3.97 | 5/16 | 7.94 | 11/32 | 8.7 | 1/2 | 12.7 | 5/8 | 16 | 2.7 |
| 5/32 | 3.97 | 3/16 | 4.76 | 3/8 | 9.53 | 3/8 | 9.53 | 9/16 | 14.3 | 11/16 | 17 | 3.67 |
| 3/16 | 4.76 | 7/32 | 5.56 | 7/16 | 11.11 | 7/16 | 11.11 | 21/32 | 16.7 | 1 | 25 | 7.18 |
| 7/32 | 5.56 | 1/4 | 6.35 | 1/2 | 12.7 | 1/2 | 12.7 | 3/4 | 19 | 11/16 | 26 | 10 |
| 1/4 | 6.35 | 9/32 | 7.14 | 9/16 | 14.29 | 17/32 | 13.5 | 13/16 | 20.6 | 11/8 | 28 | 11.76 |
| 9/32 | 7.14 | 5/16 | 7.94 | 5/8 | 15.88 | 9/16 | 14.3 | 7/8 | 22.2 | 13/16 | 30 | 13.62 |
| 5/16 | 7.94 | 3/8 | 9.53 | 23/32 | 19.05 | 11/16 | 17.5 | 11/32 | 26.2 | 11/4 | 32 | 20.94 |
| 3/8 | 9.53 | 7/16 | 11.11 | 27/32 | 22.23 | 3/4 | 19.1 | 15/32 | 29.4 | 17/16 | 36 | 28.18 |
| 7/16 | 11.11 | 1/2 | 12.7 | 1 | 25.4 | 15/16 | 23.8 | 17/16 | 36.5 | 1 11/16 | 42 | 52 |
| 1/2 | 12.7 | 9/16 | 14.29 | 1 1/8 | 28.58 | 11/16 | 27 | 15/8 | 41.3 | 2 | 50 | 80.15 |
| 9/16 | 14.29 | 5/8 | 15.88 | 1 1/4 | 31.75 | 11/8 | 28.6 | 13/4 | 44.5 | 21/8 | 54 | 99.88 |
| 5/8 | 15.88 | 11/16 | 17.46 | 1 3/8 | 34.93 | 11/4 | 31.8 | 1 15/16 | 49.2 | 21/2 | 64 | 139.78 |
