Die Cast Nylon Pulley Single Sheave with Fixed Eye.
It is made of zinc alloy, die cast.
Zinc Plated body and white nylon wheel for light duty application. Nylon sheave for synthetic and natural fiber ropes.
*Not suitable to use with cable or steel wire rope.
| Technical Notes | Fixed Eye Light Duty Non-Rated Blocks |
| Material | Zinc Alloy |
| Processing | Cast |
| Surface Finished | Zinc plated or nickel finishedWhite Nylon Wheel |
| Size | 15mm , 20mm , 25mm , 30mm , 40mm , 50mm , 65mm |
| Tips | Nylon sheave for synthetic and natural fibre ropes |
| Warning | Not to be used with cable or steel wire rope. |

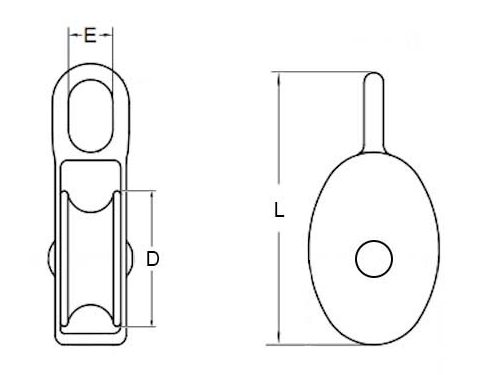

| Size | SWL (Ton) | Dia. | ∅ | L (mm) | A (mm) | B (mm) | C (mm) | Weight(kg) |
| 2″ | 0.25 | 6mm | 50 | 210 | 58 | 42 | 11 | 0.65 |
| 3″ | 0.5 | 8mm | 71 | 293 | 88 | 57 | 10 | 1.4 |
| 4″ | 1 | 10mm | 96 | 358 | 112 | 63 | 15 | 2.65 |
| 5″ | 1.5 | 13mm | 121 | 410 | 140 | 68 | 17 | 4.2 |
| 6″ | 2 | 16mm | 148 | 485 | 164 | 76 | 20 | 6.2 |
| 7″ | 3 | 19mm | 173 | 543 | 196 | 84 | 22 | 9.3 |
| 8″ | 4 | 22mm | 200 | 583 | 220 | 89 | 26 | 11.5 |
| 10″ | 5 | 25mm | 250 | 700 | 272 | 89 | 28 | 16.5 |
| 12″ | 6 | 28mm | 300 | 740 | 320 | 95 | 28 | 25 |
