Die Cast Nylon Pulley Double Sheave with Fixed Eye.
It is for light duty application and commonly used with rope.
Nylon sheave for synthetic and natural fiber ropes.
*Not suitable to be used with cable or steel wire rope.
| Material | Zinc Alloy |
| Processing | Die forged |
| Surface Finished | Powder Coated |
| Size | 15mm , 20mm , 25mm , 30mm , 40mm , 50mm |
| Tips | Nylon sheave for synthetic and natural fiber ropes. Single sheave is also available. |

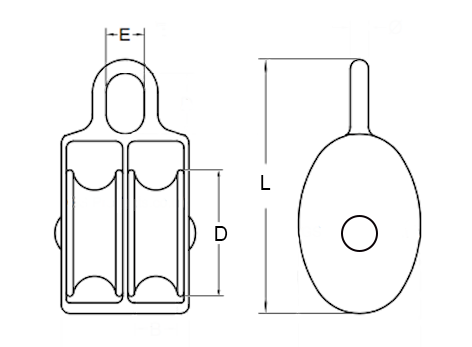

| D (mm) | L (mm) | E (mm) | NW (kg) |
| 15 | 49 | 10 | 34 |
| 20 | 58 | 11 | 55 |
| 25 | 70 | 12 | 72 |
| 30 | 80 | 13 | 115 |
| 40 | 90 | 16 | 190 |
| 50 | 100 | 17 | 293 |
