JIS Ship Wooden Block Single With Hook.
Also called Wooden Pulley Hook JIS Type, it is made of wooden shell and hot dipped galvanized steel parts.
It is common lifting mechanism used for rigging and can be used with wire rope, nylon rope or chain.
| Material | Carbon Steel / Wood |
| Processing | Machining/Stamping/Forging |
| Surface Finished | Hot Dipped Galvanized |
| Size | 140mm , 180mm , 200mm , 220mm , 240mm |
| Origin | China |

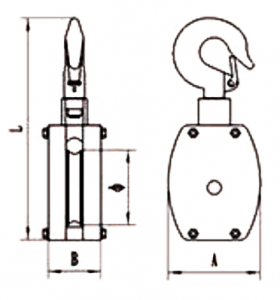

| Size | SWL (Ton) | Dia. | ∅ | L (mm) | A (mm) | B (mm) | Weight(KG) |
| 140mm | 0.18 | 14mm | 91 | 277 | 112 | 69 | 2.32 |
| 180mm | 0.29 | 18mm | 117 | 348 | 144 | 82 | 3.62 |
| 200mm | 0.35 | 20mm | 130 | 373 | 160 | 89 | 4.73 |
| 220mm | 0.42 | 22mm | 143 | 395 | 176 | 97 | 6.48 |
| 240mm | 0.5 | 24mm | 156 | 420 | 192 | 103 | 8.44 |
