Malleable Wire Rope Clip US Type.
Also called as malleable wire rope grip/clamp US type.
Made of superior mild steel, this type clip/grip is designed to make an eye or join two cable or wire rope ends together.
The intended application for the wire rope or cable should determine which type to use.
The broad saddle section of the clip gives excellent support to the load bearing section of the wire rope compared with other grip designs.
| Technical Notes | According to US Fed. Spec. |
| Material | Superior Mild Steel |
| Processing | Malleable Cast Body, Steel U Bolt |
| Surface Finished | Zinc Plated |
| Size | 1/16”,1/8”,3/16”,1/4”,5/16”,3/8”,7/16”1/2”,9/16”,5/8”,3/4”,7/8”,1”,1-1/8” |
| Safety Factor | 5:1 |
| Packing | Carton or Gunny bag, then pack on pallet |
| Origin | China |

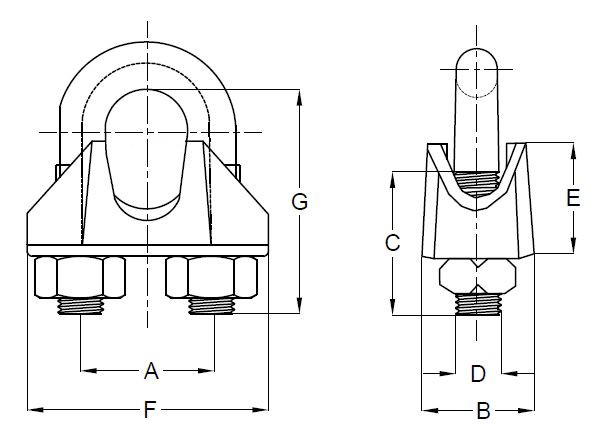

| Size (in) | Weight per PC (lbs) | Dimensions (in) | ||||||
| A | B | C | D | E | F | G | ||
| 1/16 | 0.03 | 1/16 | 0.45 | 0.45 | 0.15 | 0.38 | 0.69 | 0.65 |
| 1/8 | 0.04 | 1/8 | 0.55 | 0.55 | 0.18 | 0.42 | 0.87 | 0.79 |
| 3/16 | 0.063 | 3/16 | 0.59 | 0.63 | 0.25 | 0.51 | 1.02 | 0.94 |
| 1/4 | 0.13 | 1/4 | 0.73 | 0.79 | 0.31 | 0.59 | 1.25 | 1.24 |
| 5/16 | 0.15 | 5/16 | 0.79 | 0.87 | 0.31 | 0.63 | 1.38 | 1.34 |
| 3/8 | 0.21 | 3/8 | 0.87 | 1.06 | 0.38 | 0.87 | 1.59 | 1.65 |
| 7/16 | 0.37 | 7/16 | 0.91 | 1.18 | 0.44 | 0.87 | 1.7 | 1.69 |
| 1/2 | 0.37 | 1/2 | 1.02 | 1.38 | 0.44 | 0.92 | 1.93 | 2.12 |
| 9/16 | 0.59 | 9/16 | 1.04 | 1.58 | 0.5 | 1.06 | 2.07 | 2.15 |
| 5/8 | 0.59 | 5/8 | 1.12 | 1.58 | 0.5 | 1.1 | 2.26 | 2.33 |
| 3/4 | 0.84 | 3/4 | 1.26 | 1.65 | 0.56 | 1.33 | 2.4 | 2.7 |
| 7/8 | 1.25 | 7/8 | 1.46 | 1.81 | 0.63 | 1.5 | 2.8 | 3.08 |
| 1 | 1.66 | 1 | 1.65 | 2.2 | 0.63 | 1.69 | 3.05 | 3.44 |
| 1-1/8 | 2.43 | 1-1/8 | 2.06 | 2.75 | 0.75 | 2.19 | 3.38 | 4 |
