Wire Rope Clip DIN741 Galvanized Malleable.
Made of superior mild steel, it is also called as wire rope grip DIN741 galv. malleable.
This clip is used to make an eye or join two cable or wire rope ends together.
The two layers of wire rope are place in the U-bolt.
Type is available in standard sizes as well as customized sizes.
*Not suitable for overhead lifting or hoisting.
| Technical Notes | Conform to DIN741 |
| Material | Superior Mild Steel |
| Finish | Zinc plated / Hot dipped galvanized / Power coated |
| Size | 3mm,5mm,6mm,8mm,10mm,11mm,12mm,14mm,16mm19mm,22mm,26mm,30mm,32mm,34mm,40mm |
| Note | Not to be used for overhead lifting |

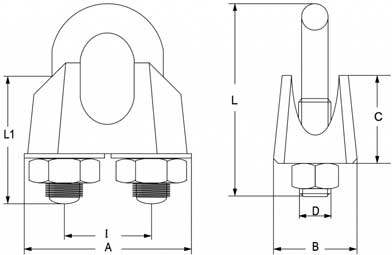

| Rope Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | I (mm) | L (mm) | L1 (mm) | Unit Weight (kg) |
| 3 | 21 | 10 | 10 | M 4 | 9 | 20 | 12 | 0,008 |
| 5 | 24 | 11 | 10 | M 5 | 11 | 24 | 13 | 0,018 |
| 6 | 26 | 12 | 11 | M 5 | 13 | 28 | 15 | 0,020 |
| 8 | 30 | 14 | 15 | M 6 | 16 | 34 | 19 | 0,027 |
| 10 | 37 | 20 | 19 | M 8 | 20 | 42 | 22 | 0,065 |
| 11 | 38 | 20 | 20 | M 8 | 21 | 44 | 22 | 0,065 |
| 12 | 44 | 25 | 23 | M 10 | 25 | 55 | 30 | 0,105 |
| 14 | 46 | 25 | 25 | M 10 | 27 | 57 | 30 | 0,120 |
| 16 | 52 | 28 | 28 | M 12 | 30 | 63 | 33 | 0,165 |
| 19 | 58 | 32 | 34 | M 12 | 34 | 75 | 38 | 0,225 |
| 22 | 64 | 35 | 35 | M 14 | 38 | 85 | 44 | 0,270 |
| 26 | 68 | 38 | 38 | M 14 | 42 | 95 | 45 | 0,405 |
| 30 | 80 | 40 | 45 | M 16 | 50 | 110 | 50 | 0,500 |
| 32 | 80 | 40 | 45 | M 16 | 50 | 118 | 50 | 0,650 |
| 34 | 88 | 45 | 52 | M 16 | 54 | 120 | 55 | 0,720 |
| 40 | 95 | 48 | 58 | M 16 | 60 | 140 | 60 | 0,880 |
