Italian Type Drop Forged Wire Rope Clip.
Also called as Italian type drop forged wire rope grip or clamp, made of superior carbon steel or mild steel.
It is used to make an eye or join two cable or wire rope ends together.
The intended application for the wire rope or cable should determine which type to use.
| Material | Superior Carbon Steel or mild steel |
| Surface Finished | Electric Galvanized/Hot Dipped Galvanized/Powder Coated |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 28mm, 30mm, 32mm, 38mm, 45mm, 50mm |

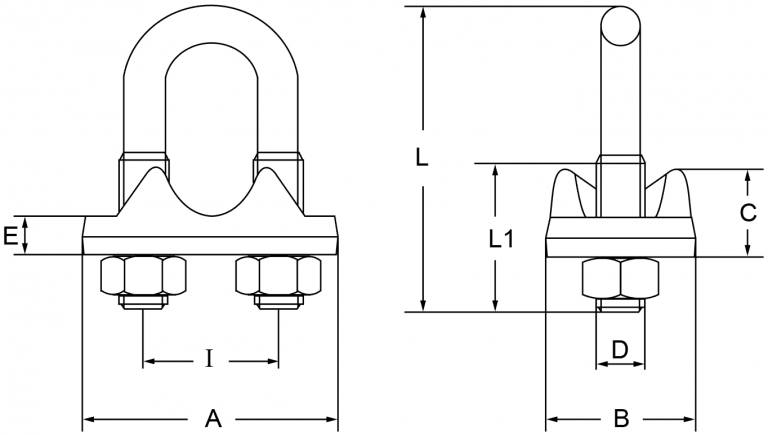

| Size | Rope Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | I (mm) | L (mm) | L1 (mm) | Unit weight (kg) |
| 4mm | 3 / 4 | 21 | 14 | 9 | 4 | 4,5 | 9 | 20 | 12 | 0,010 |
| 5mm | 5 | 25 | 17 | 10 | 5 | 4,5 | 11 | 24 | 13 | 0,020 |
| 6mm | 6 | 30 | 19 | 11 | 6 | 5 | 14,5 | 34 | 19 | 0,030 |
| 8mm | 8 | 33 | 20 | 12 | 6 | 5,5 | 16 | 34 | 19 | 0,040 |
| 10mm | 10 | 38 | 22 | 14 | 8 | 6 | 18 | 44 | 24 | 0,070 |
| 11mm | 11 | 40 | 23 | 15 | 8 | 6,5 | 20 | 45 | 27 | 0,080 |
| 12mm | 12 | 45 | 25 | 16 | 10 | 7 | 23 | 55 | 30 | 0,120 |
| 14mm | 14 | 46 | 27 | 17 | 10 | 7,5 | 24 | 55 | 30 | 0,140 |
| 16mm | 16 | 53 | 31 | 18 | 10 | 8 | 28 | 63 | 32 | 0,180 |
| 18mm | 18 | 59 | 33 | 20 | 12 | 8 | 30 | 78 | 38 | 0,260 |
| 20mm | 20 | 60 | 34 | 22 | 12 | 9 | 33 | 78 | 38 | 0,290 |
| 22mm | 22 | 64 | 34 | 23 | 12 | 9,5 | 36 | 81 | 45 | 0,300 |
| 24mm | 24-25 | 70 | 40 | 24 | 12 | 10 | 38 | 86 | 45 | 0,380 |
| 28mm | 28 | 80 | 43 | 30 | 14 | 12 | 42 | 110 | 55 | 0,560 |
| 30mm | 30 | 80 | 44,5 | 32 | 14 | 12 | 48 | 112 | 55 | 0,706 |
| 32mm | 32 | 92 | 45 | 34 | 16 | 14 | 49 | 115 | 60 | 0,910 |
| 38mm | 36-38 | 95 | 51 | 39 | 16 | 16 | 57 | 130 | 63 | 1,030 |
| 45mm | 45 | 115 | 58 | 46 | 16 | 16 | 70 | 158 | 83 | 1,450 |
| 50mm | 50 | 115 | 59 | 46 | 16 | 16 | 70 | 158 | 83 | 1,450 |
