Simplex Wire Rope Grip Zinc Plated.
Also called as stamped single cable clamp, simplex wire rope clip, it is made of low carbon steel.
Simplex wire rope clip is designed for wire rope which requires a simple loop setup.
The screw must be securely tightened.
This wire rope clip/grip is available in standard sizes as well as customized sizes.
| Material | Low Carbon Steel |
| Processing | Drop Forged |
| Surface Finished | Electric Galvanised |
| Size | 2mm,3mm,4mm,5mm,6mm,8mm,10mm |
| Origin | China |

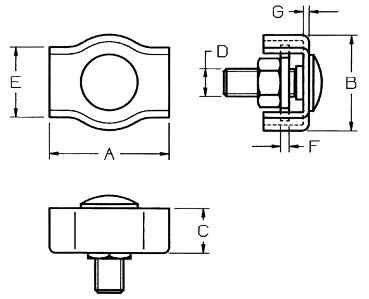

| Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Unit Weight (Kg) |
| 2mm | 17,5 | 12 | 5 | M 4 | 7,5 | 1 | 1 | 0,002 |
| 3mm | 17,5 | 15 | 6,5 | M 4 | 10 | 1,5 | 1,5 | 0,002 |
| 4mm | 22 | 18 | 7,5 | M 5 | 12 | 1,5 | 1,5 | 0,004 |
| 5mm | 24 | 20 | 8,5 | M 5 | 14 | 1,5 | 1,5 | 0,004 |
| 6mm | 30 | 23 | 10 | M 6 | 17 | 1,5 | 1,5 | 0,005 |
| 8mm | 36 | 30 | 14 | M 8 | 22 | 2 | 2 | 0,050 |
| 10mm | 42 | 34 | 16 | M 10 | 25 | 3 | 2 | 0,090 |
