Duplex Wire Rope Clip/Grip Zinc Plated.
It is designed for wire rope which require a simple loop setup.
Simply loop the cable each side of the threaded bolt and tighten down the plate using a spanner. Both screws must be securely tightened.
The Duplex wire rope grip is used particularly with 7×19 construction wire rope.
Duplex grip/clip is not suitable for any 1×19 construction cables & 7×7 construction 4mm & above.
*Not suitable for lifting.
| Material | Low Carbon Steel |
| Processing | Stamp |
| Surface Finished | Electric Galvanized |
| Size | 2mm,3mm,4mm,5mm,6mm,8mm |

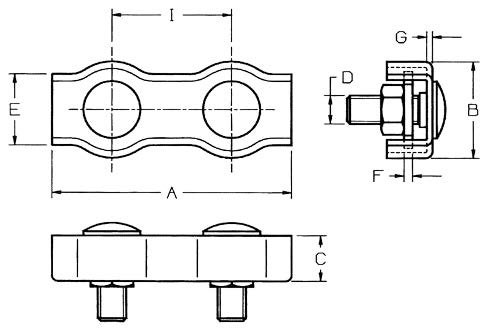

| Size | A (mm) | B (mm) | C (mm) | D | E (mm) | F (mm) | G (mm) | I (mm) | Unit Weight (kg) |
| 2mm | 38 | 12 | 5 | M 4 | 7,5 | 1 | 1,5 | 20,5 | 0,010 |
| 3mm | 38 | 15 | 6,5 | M 4 | 10 | 1,5 | 1,5 | 20,5 | 0,015 |
| 4mm | 47 | 18 | 7,5 | M 5 | 12 | 1,5 | 1,5 | 25 | 0,025 |
| 5mm | 51 | 20 | 8,5 | M 5 | 14 | 1,5 | 1,5 | 27 | 0,035 |
| 6mm | 63 | 23 | 10 | M 6 | 17 | 1,5 | 2 | 33 | 0,050 |
| 8mm | 76 | 30 | 14 | M 8 | 22 | 2 | 2 | 42 | 0,100 |
