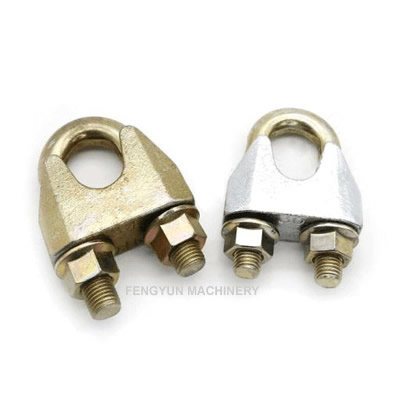

Malleable Wire Rope Clip DIN1142(EN13411-5).
The body is cast from Malleable iron and the U bolt is stamped from round steel.
It is commonly used in static bolted and rope fastening, such as electric power, communications line, band fastening etc.
This type clip/grip is available in standard sizes as well as customized sizes.
| Technical Notes | Comform to DIN1142 (EN13411-5) |
| Material | Malleable Iron Body / Steel U Bolt |
| Processing | Cast / Stamping |
| Surface Finished | Zinc Plated / Hot Dip Galvanized |
| Size | 5mm , 6,5mm , 8mm , 10mm , 12mm , 14mm , 16mm , 19mm , 22mm , 26mm , 30mm , 34mm , 40mm |
| Origin | China |

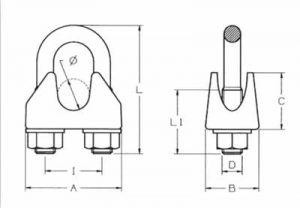

| Size | A (mm) | B (mm) | C (mm) | D | I (mm) | L (mm) | L1 (mm) | Unit weight (kg) |
| 5mm | 25 | 13 | 13 | M 5 | 12 | 25 | 13 | 0,020 |
| 6,5mm | 30 | 16 | 14 | M 6 | 14 | 32 | 17 | 0,040 |
| 8mm | 39 | 20 | 18 | M 8 | 18 | 41 | 20 | 0,082 |
| 10mm | 40 | 20 | 21 | M 8 | 20 | 46 | 24 | 0,092 |
| 12mm | 50 | 24 | 25 | M 10 | 24 | 50 | 28 | 0,250 |
| 14mm | 59 | 28 | 30 | M 12 | 28 | 66 | 31 | 0,300 |
| 16mm | 64 | 32 | 35 | M 14 | 32 | 76 | 35 | 0,430 |
| 19mm | 68 | 32 | 40 | M 14 | 36 | 83 | 36 | 0,490 |
| 22mm | 74 | 34 | 44 | M 16 | 40 | 96 | 40 | 0,680 |
| 26mm | 84 | 38 | 51 | M 20 | 46 | 111 | 50 | 1,170 |
| 30mm | 95 | 41 | 59 | M 20 | 54 | 127 | 55 | 1,400 |
| 34mm | 105 | 45 | 67 | M 22 | 60 | 141 | 60 | 2,130 |
| 40mm | 117 | 49 | 77 | M 24 | 68 | 159 | 65 | 2,680 |
