Drop Forged Wire Rope Clip G450 US Type.
also known as wire rope grip or clamp G450 US type.
For important or critical application to be used in overhead lifting or suspending, always use standard drop forged wire rope clip G450.
This clip/grip G450, is made of superior mild steel.
| Technical Notes | Conform to ASME B30.26. |
| Material | Superior Mild Steel |
| Processing | Drop Forged |
| Surface Finished | Electric galvanized, Hot dip galvanized, Powder Coated |
| Size | 1/8″,3/16″,1/4″,5/16″,3/8″,7/16″,1/2″,9/16″,5/8″,3/4″,7/8″,1″,1-1/8″,1-1/4″,1-3/8″,1-1/2″,1-5/8″,1-3/4″,2″,2-1/4″ |
| Origin | China |

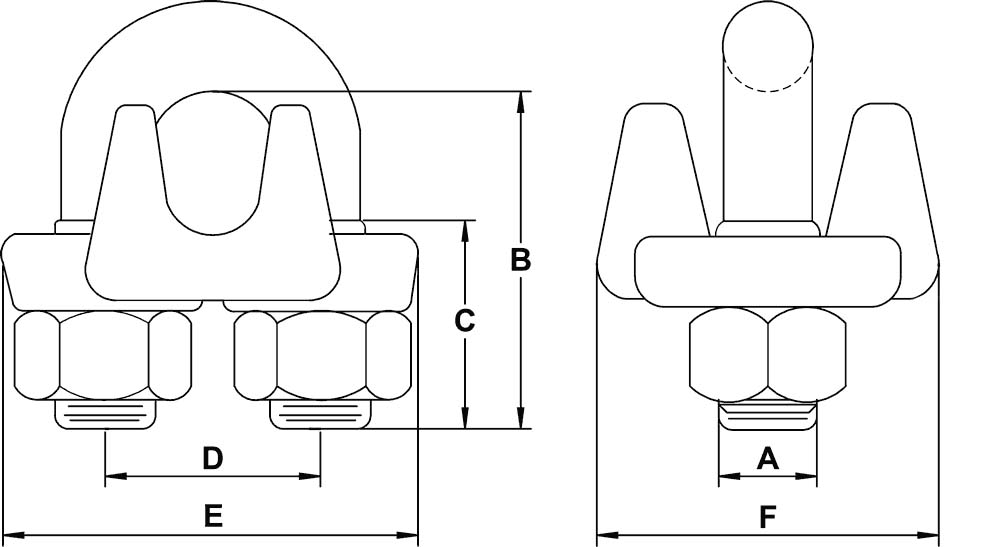

| SIZE | DIMENSION (MM) | WEIGHT /100PCS (KG) | |||||
| A | B | C | D | E | F | ||
| 1/8” | 7/32" | 18 | 11 | 12 | 23 | 20 | 3 |
| 3/16" | 1/4” | 24 | 14 | 15 | 29 | 23 | 5 |
| 1/4” | 5/16” | 26 | 15 | 19 | 36 | 29 | 8.5 |
| 5/16” | 3/8” | 35 | 19 | 22 | 43 | 33 | 13 |
| 3/8” | 7/16” | 38 | 19 | 25 | 49 | 41 | 20 |
| 7/16” | 1/2” | 47 | 25 | 30 | 57 | 46 | 32 |
| 1/2” | 9/16” | 47 | 25 | 30 | 58 | 48 | 32 |
| 9/16” | 9/16” | 57 | 32 | 33 | 63 | 52 | 44 |
| 5/8″ | 9/16” | 60 | 32 | 33 | 63 | 52 | 44 |
| 3/4” | 5/8” | 70 | 36 | 38 | 72 | 56 | 63 |
| 7/8” | 3/4” | 79 | 41 | 44 | 80 | 62 | 93 |
| 1″ | 3/4” | 89 | 45 | 48 | 88 | 66 | 110 |
| 1-1/8” | 3/4” | 98 | 51 | 51 | 91 | 71 | 120 |
| 1-1/4” | 7/8” | 108 | 56 | 59 | 105 | 80 | 170 |
| 1-3/8” | 7/8” | 118 | 56 | 60 | 106 | 80 | 200 |
| 1-1/2” | 7/8” | 125 | 60 | 66 | 113 | 87 | 220 |
| 1-5/8” | 1" | 135 | 66 | 70 | 120 | 92 | 330 |
| 1-3/4” | 1-1/8” | 146 | 70 | 78 | 134 | 97 | 420 |
| 2” | 1-1/4” | 161 | 75 | 85 | 147 | 111 | 610 |
| 2-1/4” | 1-1/4” | 660 | |||||
