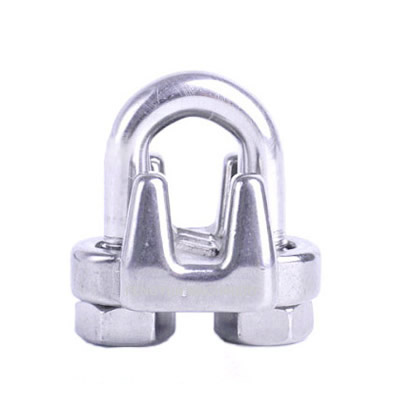

Wire Rope Clip G450 Stainless Steel US Type.
Also called as wire rope grip or steel cable clamp US Type.
This type wire rope clip consists of a U-shaped bolt. So can fix the wire rope cable against the saddle after the two nuts are tightened.
Made of stainless steel with excellent rust/corrosion resistance, this type clip is ideal for outdoor use, for saltwater field and other corrosive environments.
Wire Rope Clip G450 Stainless Steel US Type often apply to marine applications such as fishing, on boat, on yacht, on vessel deck and also ideal for food processing facility.
| Technical Notes | Conform to US Fed. Spec. FF-C-450 |
| Material | Stainless Steel 304/316 |
| Processing | Drop Forged |
| Surface Finished | Highly Polishing |
| Size | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 9/16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/8″ , 1-1/4″ , 1-3/8″ , 1-1/2″ Wire Rope Clips |

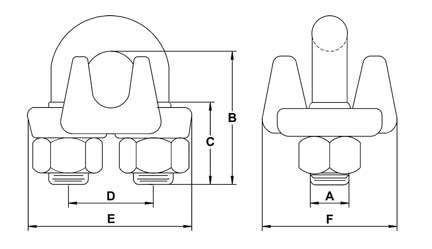

| SIZE | DEMENSION | WEIGHT KGS/100PCS | |||||
| A | B | C | D | E | F | ||
| 1/8” | 7/32" | 18 | 11 | 12 | 23 | 20 | 3 |
| 3/16″ | 1/4” | 24 | 14 | 15 | 29 | 23 | 5 |
| 1/4” | 5/16” | 26 | 15 | 19 | 36 | 29 | 8.5 |
| 5/16” | 3/8” | 35 | 19 | 22 | 43 | 33 | 13 |
| 3/8” | 7/16” | 38 | 19 | 25 | 49 | 41 | 20 |
| 7/16” | 1/2” | 47 | 25 | 30 | 57 | 46 | 32 |
| 1/2” | 9/16” | 47 | 25 | 30 | 58 | 48 | 32 |
| 9/16” | 9/16” | 57 | 32 | 33 | 63 | 52 | 44 |
| 5/8″ | 9/16” | 60 | 32 | 33 | 63 | 52 | 44 |
| 3/4” | 5/8” | 70 | 36 | 38 | 72 | 56 | 63 |
| 7/8” | 3/4” | 79 | 41 | 44 | 80 | 62 | 93 |
| 1″ | 3/4” | 89 | 45 | 48 | 88 | 66 | 110 |
| 1-1/8” | 3/4” | 98 | 51 | 51 | 91 | 71 | 120 |
| 1-1/4” | 7/8” | 108 | 56 | 59 | 105 | 80 | 170 |
| 1-3/8” | 7/8” | 118 | 56 | 60 | 106 | 80 | 200 |
| 1-1/2” | 7/8” | 125 | 60 | 66 | 113 | 87 | 220 |
