Deka Wire Rope Clip Galvanized.
It is made of malleable cast iron and has big strength and reliability.
This type clip/grip consists of up body and down body. There is a bigger contact surface between the wire rope and body.
Available in standard sizes as well as customized sizes.
| Technical Notes | Conform To Deka Type |
| Material | Malleable Cast Iron |
| Processing | Cast |
| Surface Finished | Electric Galvanized |
| Size | 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm |

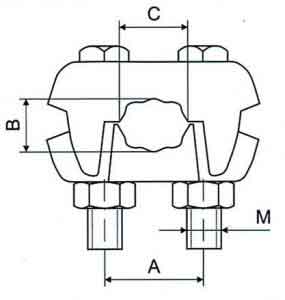

| Size (mm) | B (mm) | C (mm) | A (mm) | M Size |
| 6 | 17 | 5 | 6 | M6 |
| 8 | 20 | 7 | 8 | M6 |
| 10 | 20 | 9 | 10 | M8 |
| 12 | 21.5 | 10 | 12 | M10 |
| 16 | 25.5 | 13 | 15 | M12 |
| 20 | 34 | 17 | 20 | M14 |
| 25 | 43 | 20 | 25 | M16 |
