Australian Standard Wire Rope Grip AS2076.
Also called as Australian standard wire rope clip or clamp AS2076.
Heavy duty cast steel saddle and high tensile U-bolt comes with larger nut size for greater tightening force.
*Not for lifting purpose.
| Technical Notes | Conform to AS2076 |
| Surface Finished | Hot Dip Galvanized |
| Size | 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 26mm, 28mm, 32mm, 36mm, 40mm, 44mm, 52mm |
| Safety Factor | 5:1 |

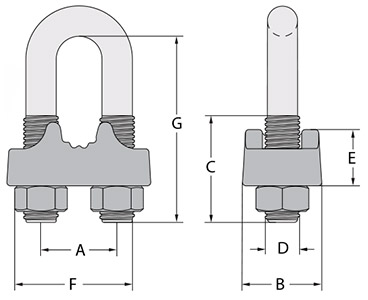

| Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | WT (kg) |
| 6mm | 14 | 15 | 20 | 6 | 12 | 28 | 26 | 0.04 |
| 8mm | 18 | 19 | 22 | 8 | 14 | 34 | 32 | 0.059 |
| 10mm | 22 | 23 | 28 | 10 | 17 | 42 | 40 | 0.112 |
| 12mm | 26 | 30 | 33 | 12 | 20 | 50 | 48 | 0.207 |
| 14mm | 28 | 30 | 33 | 12 | 21.5 | 52 | 52 | 0.223 |
| 16mm | 34 | 38 | 44 | 16 | 26.5 | 66 | 64 | 0.466 |
| 18mm | 26 | 38 | 44 | 16 | 27 | 68 | 68 | 0.499 |
| 20mm | 38 | 38 | 44 | 16 | 30 | 70 | 72 | 0.538 |
| 22mm | 40 | 38 | 44 | 16 | 31.5 | 72 | 76 | 0.560 |
| 26mm | 50 | 48 | 55 | 20 | 37.5 | 90 | 92 | 1.055 |
| 28mm | 52 | 48 | 55 | 20 | 39 | 92 | 96 | 1.075 |
| 32mm | 56 | 48 | 55 | 20 | 41 | 96 | 104 | 1.200 |
| 36mm | 64 | 58 | 66 | 24 | 48 | 112 | 120 | 1.941 |
| 40mm | 68 | 58 | 66 | 24 | 50 | 116 | 128 | 2.071 |
| 44mm | 73 | 62 | 90 | 27 | 52 | 135 | 150 | 3.000 |
| 52mm | 85 | 69 | 103 | M30 | 56 | 154 | 185 | 4.200 |
