Open Spelter Wire Rope Socket G-416 US Type.
Forged Open Spelter Wire Rope Socket is made from superior carbon steel or superior alloy steel.
Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.
*Not suitable for overhead lifting.

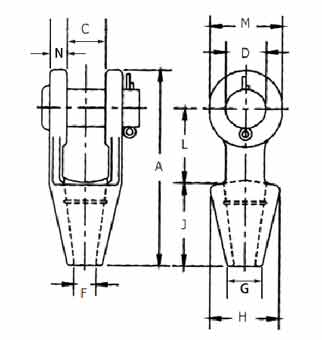

| Technical Notes | Conform to US FED. SPEC. RR-S-550E, Type A |
| Material | Superior forged Steel/Superior alloy steel |
| Surface Finished | Zinc plated / Hot dipped galvanized |
| Note | Never use for overhead lifting |
| Rope Dia. | A | C | D | F | G | H | J | L | M | N | Weight (kg) | |
| (in) | (mm) | mm | ||||||||||
| 1/4 | 6 | 115.82 | 23.11 | 17.53 | 9.65 | 11.53 | 39.62 | 57.15 | 39.62 | 33.27 | 9.14 | 0.5 |
| 5/16~3/8 | 8~9 | 122.94 | 20.57 | 50.57 | 12.7 | 20.57 | 42.93 | 57.15 | 44.45 | 38.1 | 11.19 | 0.59 |
| 7/16~1/2 | 11~12 | 141.22 | 25.4 | 25.4 | 14.22 | 23.88 | 47.75 | 63.5 | 50.8 | 47.75 | 12.7 | 1.02 |
| 9/16~5/8 | 14~16 | 171.5 | 21.75 | 30.23 | 17.53 | 28.7 | 57.15 | 76.2 | 63.5 | 57.15 | 14.22 | 1.8 |
| 3/4 | 19 | 201.68 | 38.1 | 35.05 | 20.57 | 31.75 | 66.53 | 88.9 | 76.2 | 66.55 | 15.75 | 2.64 |
| 7/8 | 22 | 234.95 | 44.45 | 41.4 | 23.88 | 38.1 | 82.55 | 101.6 | 88.8 | 79.5 | 20.32 | 4.47 |
| 1 | 25 | 268.22 | 50.8 | 50.8 | 28.7 | 44.46 | 95.25 | 114.3 | 101.6 | 95.25 | 22.35 | 7.03 |
| 1-1/8 | 28 | 299.97 | 57.15 | 57.15 | 31.75 | 50.8 | 104.65 | 127 | 117.35 | 104.65 | 25.4 | 9.75 |
| 1-1/4~1-3/8 | 31.5~35 | 335.03 | 63.5 | 63.5 | 38.1 | 57.15 | 120.65 | 139.7 | 127 | 120.65 | 28.7 | 14.06 |
| 1-1/2 | 38 | 384.05 | 76.2 | 69.85 | 41.4 | 69.85 | 133.35 | 152.4 | 152.4 | 136.65 | 30.23 | 21.43 |
| 1-5/8 | 42 | 412.75 | 76.2 | 76.2 | 44.45 | 76.2 | 139.7 | 165.1 | 165.1 | 146.05 | 33.27 | 24.44 |
| 1-3/4~1-7/8 | 45~47.5 | 463.55 | 88.9 | 88.9 | 50.8 | 79.5 | 162.05 | 190.5 | 177.8 | 165.1 | 39.62 | 37.2 |
| 2~2-1/8 | 50-53 | 546.10 | 101.6 | 95.25 | 57.15 | 95.25 | 187.45 | 215.9 | 288.6 | 177.8 | 45.97 | 56.7 |
| 2-1/4~2-3/8 | 57-60 | 596.90 | 114.3 | 107.95 | 63.5 | 101.6 | 209.55 | 228.6 | 254 | 196.85 | 54.1 | 75.75 |
| 2-1/2~2-5/8 | 63~66 | 647.7 | 127 | 120.65 | 73.15 | 114.3 | 234.95 | 247.65 | 273.05 | 215.9 | 60.45 | 114.3 |
| 2-3/4~2-7/8 | 70-73 | 692.15 | 133.35 | 127 | 79.25 | 123.95 | 266.7 | 279.4 | 279.4 | 228.6 | 73.15 | 142.88 |
| 3~3-1/8 | 76~80 | 736.6 | 146.05 | 133.35 | 85.85 | 133.15 | 282.45 | 304.8 | 285.75 | 241.3 | 76.2 | 172.38 |
| 3-1/4~3-3/8 | 82~85 | 784.35 | 158.75 | 139.7 | 91.95 | 146.05 | 301.75 | 330.4 | 295.45 | 254 | 79.25 | 196.86 |
| 3-1/2~3-5/8 | 89~92 | 844.5 | 171.45 | 152.4 | 98.55 | 165.1 | 314.45 | 355.6 | 317.5 | 273.05 | 82.55 | 255.38 |
| 3-3/4~4 | 95-100 | 920.5 | 190.5 | 177.8 | 107.95 | 184.15 | 345.95 | 381 | 342.9 | 317.5 | 88.9 | 355.16 |
