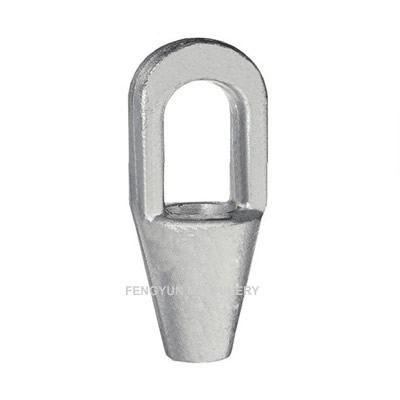

Closed Spelter Socket G-417 US Type.
It is made of superior carbon Steel or superior alloy steel.
Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.
*Not suitable for overhead lifting.
| Technical Notes | Conform to US FED. SPEC. RR-S-550E, Type B |
| Material | Superior carbon Steel / alloy steel |
| Surface Finished | Zinc plated / Hot dipped galvanized |
| Note | Never use for overhead lifting |

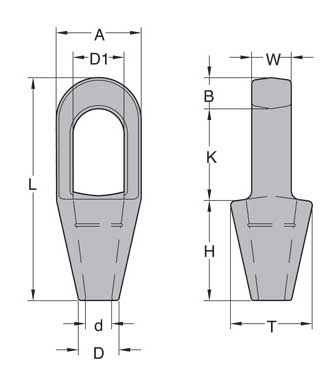

| Rope Dia. | L | B | A | D1 | d | D | T | H | L | K | Weight (kg) | |
| (in) | (mm) | mm | ||||||||||
| 1/4 | 6 | 114.3 | 12.7 | 38.1 | 22.35 | 9.65 | 17.53 | 39.62 | 57.15 | 12.7 | 44.45 | 0.23 |
| 5/16~3/8 | 8~9 | 123.95 | 15.75 | 42.93 | 24.64 | 12.7 | 20.57 | 42.93 | 57.15 | 17.53 | 50.8 | 0.23 |
| 7/16~1/2 | 11~12 | 138.18 | 17.53 | 50.8 | 29.64 | 14.22 | 23.88 | 47.75 | 63.5 | 22.35 | 57.15 | 0.68 |
| 9/16~5/8 | 14~16 | 160.27 | 20.57 | 66.8 | 35.81 | 17.53 | 28.45 | 60.45 | 76.2 | 25.4 | 63.5 | 1.13 |
| 3/4 | 19 | 192.02 | 26.92 | 76.2 | 42.16 | 20.57 | 31.75 | 69.85 | 90.42 | 31.75 | 76.2 | 1.92 |
| 7/8 | 22 | 222.25 | 31.75 | 92.2 | 47.75 | 23.88 | 38.1 | 81.55 | 101.6 | 38.1 | 88.9 | 3.29 |
| 1 | 25 | 250.95 | 35.06 | 104.9 | 58.42 | 28.7 | 44.45 | 95.25 | 112.78 | 44.45 | 101.6 | 4.76 |
| 1-1/8 | 28 | 279.4 | 38.1 | 114.3 | 65.02 | 31.75 | 50.8 | 104.9 | 127 | 50.8 | 114.3 | 6.46 |
| 1-1/4~1-3/8 | 31.5~35 | 307.85 | 41.4 | 134.62 | 71.37 | 38.1 | 57.15 | 120.65 | 139.7 | 57.15 | 127 | 8.96 |
| 1-1/2 | 38 | 354.08 | 49.28 | 135.38 | 81.03 | 41.4 | 69.85 | 133.35 | 152.4 | 63.5 | 152.4 | 13.25 |
| 1-5/8 | 42 | 384.3 | 54.1 | 146.05 | 82.55 | 44.45 | 76.2 | 139.7 | 165.1 | 69.85 | 165.1 | 16.32 |
| 1-3/4~1-7/8 | 45~47.5 | 438.15 | 55.63 | 171.45 | 95.25 | 50.8 | 79.5 | 162.05 | 190.5 | 76.2 | 192.02 | 28.98 |
| 2~2-1/8 | 50-53 | 495.3 | 61.96 | 193.8 | 111.25 | 57.15 | 95.25 | 187.45 | 215.9 | 82.55 | 217.41 | 35.84 |
| 2-1/4~2-3/8 | 57-60 | 536.7 | 66.8 | 215.9 | 127 | 63.5 | 101.6 | 209.55 | 228.6 | 92.2 | 241.3 | 47.64 |
| 2-1/2~2-5/8 | 63~66 | 596.9 | 79.25 | 241.3 | 139.7 | 73.15 | 114.3 | 234.95 | 247.65 | 101.6 | 269.75 | 63.5 |
| 2-3/4~2-7/8 | 70-73 | 644.65 | 79.25 | 273.05 | 158.75 | 79.25 | 123.95 | 258.83 | 279.4 | 123.95 | 285.75 | 99.8 |
| 3~3-1/8 | 76~80 | 685.8 | 82.55 | 292.1 | 171.45 | 85.85 | 133.25 | 292.1 | 304.8 | 133.35 | 298.45 | 125.2 |
| 3-1/4~3-3/8 | 82~85 | 742.95 | 101.6 | 311.15 | 184.15 | 91.95 | 146.05 | 311.15 | 330.2 | 146.05 | 311.15 | 141.98 |
| 3-1/2~3-5/8 | 89~92 | 787.4 | 787.4 | 330.2 | 196.85 | 98.55 | 165.1 | 330.2 | 355.6 | 158.75 | 330.2 | 181.44 |
| 3-3/4~4 | 95-100 | 844.55 | 844.55 | 361.95 | 215.9 | 107.95 | 184.15 | 361.95 | 381 | 177.8 | 355.6 | 245.85 |
