Fist Grip Wire Rope Clip Hot Dip Galvanized.
Also called as Twin Base Saddle Clamp.
Fist grip clamp is use in combination with wire rope and a thimble to make a secure wire loop.
It is preferable to U-Bolt clip and easy to torque the nuts from both sides.
| Technical Notes | Conform to Fed. Spec. FF-C-450 Type III, Class 1 |
| Processing | Drop Forged |
| Surface Finished | Electric Galvanized / Hot Dip Galvanized |
| Size | 3/16″-1/4″,5/16″,3/8″,7/16″-1/2″,9/16″-5/8″,3/4″,7/8″,1″,1-1/8″,1-1/4″,1-3/8″-1-1/2″ |
| Origin | China |

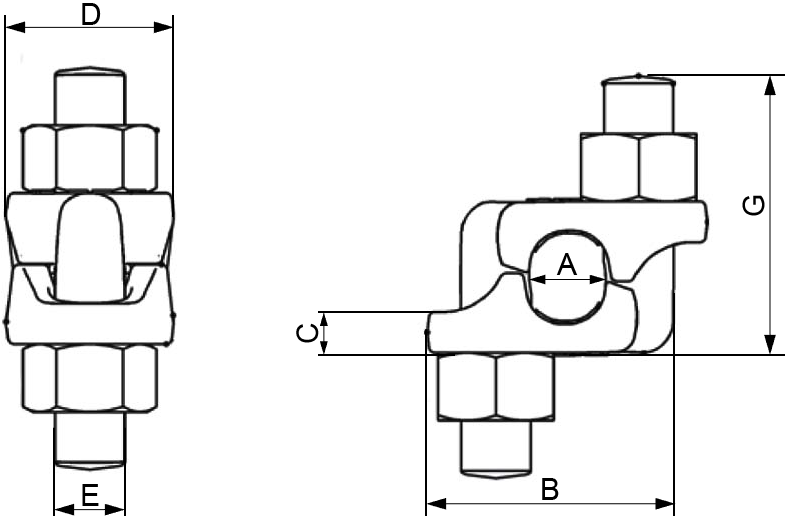

| Rope Size | Dimensions (mm) | |||||
| (in) | A | B | C | D | E | G |
| 3/16-1/4 | 8 | 32 | 6 | 24 | 3/8-16UNC | 35 |
| 5/16” | 8 | 35 | 7 | 28 | 3/8-16UNC | 40 |
| 3/8” | 11 | 41 | 7.5 | 28 | 7/16-14UNC | 46 |
| 7/16-1/2 | 14 | 48 | 8.5 | 32 | 1/2-13UNC | 56 |
| 9/16-5/8 | 17 | 58 | 9.5 | 38 | 5/8-11UNC | 68.5 |
| 3/4” | 21 | 68 | 11 | 46 | 3/4-10UNC | 85 |
| 7/8” | 24 | 75.5 | 12 | 54 | 3/4-10UNC | 88 |
| 1” | 27 | 78 | 14 | 57 | 3/4-10UNC | 98 |
| 1-1/8” | 30 | 88 | 15 | 60 | 7/8-9UNC | 106 |
| 1-1/4” | 32 | 90 | 16 | 63.5 | 7/8-9UNC | 110 |
| 1-3/8 -1-1/2” | 38 | 105 | 18 | 76 | 7/8-9UNC | 141 |
