Wire Rope Thimble AS1138.
Made of superior mild steel, this thimble is installed inside the wire rope loop to protect the cable from pinching and abrading.
Easy, quick and convenient to install. Loop the cable around the outer groove and secure with a ferrule or wire rope clip.
Wire Rope Thimble AS1138 is recommended for heavy duty applications.
| Material | Superior Mild Steel |
| Processing | Forged Steel + Machining + Stamping |
| Surface Finished | Hot Dipped Galvanized / Powder coated |
| Size-Wire | 6mm , 8mm , 10mm , 11mm , 12mm , 14mm , 16mm , 18mm , 19mm , 20mm , 22mm , 24mm , 26mm , 28mm , 32mm , 36mm , 40mm , 44mm , 48mm , 52mm |
| Tips | Recommended for heavy duty applications. |

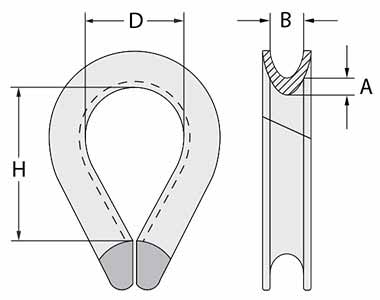

| SIZE | Wt. | DIMENSIONS (mm) | |||
| (kg/pc) | A | B | H | D | |
| 6mm | 0.04 | 4 | 7 | 25 | 16 |
| 8mm | 0.052 | 5 | 7.9 | 33 | 22 |
| 10mm | 0.08 | 5 | 10.3 | 38 | 25 |
| 11mm | 0.09 | 6 | 12.7 | 41 | 29 |
| 12mm | 0.13 | 6 | 14.3 | 44 | 32 |
| 14mm | 0.15 | 7 | 15 | 46 | 38 |
| 16mm | 0.26 | 8 | 15.9 | 59 | 41 |
| 18mm | 0.35 | 8 | 18 | 65 | 46 |
| 19mm | 0.4 | 9 | 20.6 | 73 | 51 |
| 20mm | 0.5 | 10 | 21.6 | 75 | 52 |
| 22mm | 0.62 | 10 | 22.2 | 83 | 57 |
| 24mm | 0.9 | 11 | 25.4 | 92 | 64 |
| 26mm | 1 | 11 | 27 | 111 | 72 |
| 28mm | 1.1 | 12 | 28.6 | 111 | 76 |
| 32mm | 1.3 | 14 | 33.4 | 133 | 95 |
| 36mm | 2.2 | 16 | 38 | 152 | 105 |
| 40mm | 3.2 | 18 | 43 | 165 | 114 |
| 44mm | 5.6 | 20 | 47 | 178 | 127 |
| 48mm | 8.2 | 22 | 51 | 190 | 134 |
| 52mm | 11 | 22 | 55 | 203 | 140 |
