BS464/EN13411-1/DIN3090 Galvanized Wire Rope Thimble.
Made of superior carbon steel, this thimble is installed inside the wire rope loop to protect the cable from pinching, crushing or abrading.
Easy, quick and convenient to install. Loop the cable around the outer groove and secure with a ferrule or wire rope clip.
Wire rope thimble not only creates a natural curve to support for the wire rope but also be used with other rigging accessories with a solid wire rope thimble eye to form wire rope sling.
| Technical Notes | BS464 / EN13411-1 / DIN3090 |
| Material | Super Carbon Steel |
| Surface Finished | Hot Dipped Galvanized |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 9/16″ , 5/8″ , 11/16″ , 3/4″ , 7/8″ , 15/16″ , 1″ , 1-1/8″ , 1-1/4″ , 1-3/8″ , 1-1/2″ , 1-5/8″ , 1-3/4″ , 1-7/8″ , 2″ |
| Tips | Not for lifting purpose |
| Origin | China |

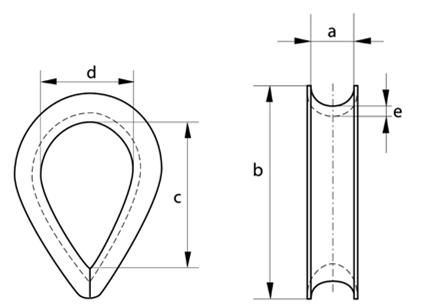

| Diameter of Rope (inch) | Width Groove | Length | Length Inside | Width Inside | Thickness Back | Weight/100 (kg) |
| a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | ||
| 1/4 | 6 | 48 | 30 | 20 | 3.5 | 5.4 |
| 5/16 | 8 | 54 | 33 | 22 | 4 | 5.7 |
| 3/8 | 10 | 64 | 38 | 25 | 4.8 | 7.6 |
| 7/16 | 13 | 73 | 41 | 29 | 4.8 | 14.2 |
| 1/2 | 14 | 80 | 44 | 32 | 5.6 | 18 |
| 9/16 | 15 | 80 | 44 | 32 | 5.6 | 18.9 |
| 5/8 | 17 | 98 | 59 | 41 | 7.9 | 34 |
| 11/16 | 19 | 108 | 67 | 44 | 7.9 | 39.7 |
| 3/4 | 20 | 124 | 73 | 51 | 9.5 | 62.4 |
| 7/8 | 23 | 133 | 83 | 57 | 9.5 | 75.6 |
| 15/16 | 25 | 146 | 92 | 64 | 10.3 | 106 |
| 1 | 27 | 162 | 108 | 70 | 10.3 | 125 |
| 1-1/8 | 29 | 178 | 111 | 76 | 12.7 | 151 |
| 1-1/4 | 33 | 197 | 133 | 95 | 12.7 | 204 |
| 1-3/8 | 38 | 229 | 152 | 105 | 15.9 | 318 |
| 1-1/2 | 41 | 254 | 165 | 114 | 17.5 | 488 |
| 1-5/8 | 46 | 254 | 165 | 114 | 17.5 | 499 |
| 1-3/4 | 51 | 286 | 178 | 127 | 25.4 | 556 |
| 1-7/8 | 60 | 318 | 191 | 133 | 28.6 | 740 |
| 2 | 64 | 330 | 203 | 140 | 28.6 | 799 |
