Tubular Thimble Galvanized without Gusset.
Tubular wire rope thimble without gusset is also called as semi-closed thimble, it is a heavy duty rope thimble.
It well keeps the wire rope into the tube groove, avoid falling off from thimble.
Various sizes are available.
| Material | Superior Mild Steel |
| Processing | Machining / Stamping |
| Surface Finished | Zinc Plated, Hot Dip Galvanized, Powder Coated |
| Size-Wire | 10mm , 12mm , 15mm , 17mm , 19mm , 22mm , 25mm , 28mm , 30mm , 35mm , 40mm , 45mm , 50mm , 55mm , 60mm , 65mm , 70mm , 75mm , 88mm , 94mm , 107mm , 112mm , 120mm ,127mm , 140mm |
| Origin | China |

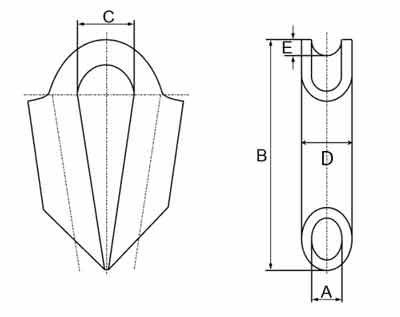

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Rope diameter (mm) | Weight (kg) |
| 10 | 90 | 23 | 16 | 6 | 8 | 0.18 |
| 12 | 90 | 23 | 20 | 8 | 10 | 0.24 |
| 15 | 105 | 27 | 25 | 10 | 12 | 0.41 |
| 17 | 115 | 27 | 25 | 10 | 14 | 0.39 |
| 19 | 120 | 32 | 29 | 12 | 16 | 0.60 |
| 22 | 140 | 35 | 32 | 15 | 18 | 0.75 |
| 25 | 180 | 45 | 37.6 | 16 | 22 | 1.40 |
| 28 | 180 | 45 | 42 | 16 | 24 | 1.75 |
| 30 | 195 | 47 | 44 | 18 | 26 | 2.2 |
| 35 | 215 | 60 | 49 | 21 | 32 | 2.6 |
| 40 | 240 | 65 | 54 | 23 | 35 | 2.95 |
| 45 | 260 | 70 | 60 | 27 | 38 | 3.85 |
| 50 | 280 | 75 | 64 | 27 | 44 | 4.4 |
| 55 | 298 | 85 | 69 | 29 | 50 | 5.1 |
| 60 | 300 | 88 | 75 | 30 | 54 | 5.9 |
| 65 | 312 | 88 | 79 | 31 | 56 | 6.6 |
| 70 | 332 | 90 | 84 | 31.5 | 60 | 7.1 |
| 75 | 350 | 94 | 90 | 32 | 65 | 8.0 |
| 88 | 450 | 130 | 108 | 45 | 72 | 20.1 |
| 94 | 500 | 150 | 114 | 50 | 80 | 24.8 |
| 107 | 550 | 190 | 127 | 52 | 92 | 30.4 |
| 112 | 600 | 200 | 140 | 70 | 96 | 50.4 |
| 120 | 650 | 220 | 152 | 76 | 104 | 68.8 |
| 127 | 660 | 220 | 159 | 78 | 110 | 70.0 |
| 140 | 750 | 240 | 180 | 90 | 115 | 110.0 |
