Gusseted Tubular Tube Thimble SCG Type.
With gusset added, this thimble is much stronger than standard thimble and offers much better protection for the eye of the winch line.
It could betterly prevent the eye from crushing or collapsing under load.
Various sizes are available.
| Material | Superior Carbon Steel |
| Processing | Machining / Stamping |
| Surface Finished | Zinc Plated, Hot Dip Galvanized, Powder Coated |
| Size-Wire | 12-10mm , 15-12mm , 17-14mm , 19-16mm , 22-18mm , 25-22mm , 28-24mm , 30-26mm , 35-32mm , 45-38mm , 50-42mm , 55-48mm |
| Origin | China |

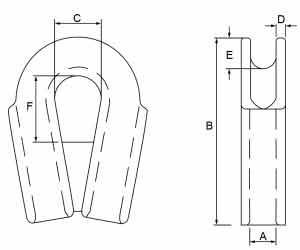

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) | Rope Diameter (mm) |
| 12 | 84 | 23 | 4 | 8 | 35 | 0.21 | 10 |
| 15 | 95 | 27 | 5 | 10 | 49 | 0.4 | 12 |
| 17 | 100 | 27 | 5 | 10 | 49 | 0.48 | 14 |
| 19 | 112 | 32 | 5 | 12 | 43 | 0.6 | 16 |
| 22 | 125 | 35 | 5 | 15 | 50 | 0.71 | 18 |
| 25 | 150 | 45 | 6.3 | 16 | 59 | 1.21 | 22 |
| 28 | 157 | 45 | 7 | 16 | 61 | 1.6 | 24 |
| 30 | 170 | 47 | 7 | 18 | 78 | 1.91 | 26 |
| 35 | 190 | 60 | 7 | 22 | 93 | 2.6 | 32 |
| 45 | 228 | 70 | 7 | 27 | 94 | 3.5 | 38 |
| 50 | 255 | 75 | 7 | 35 | 96 | 4.2 | 42 |
