G414 Heavy Duty Wire Rope Thimble.
Also called as Extra Heavy Wire Rope Thimble, it is made of superior mild steel.
G-414 Heavy Duty Wire Rope Thimble installed inside the wire rope loop to protect the cable from pinching and abrading.
Easy, quick and convenient to install. Loop the cable around the outer groove and secure with a ferrule or wire rope clip.
G-414 wire rope thimble is good for the heavy duty rigging applications.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Mild Steel |
| Processing | Machining |
| Surface Finished | Electric Galvanized / Hot Dipped Galvanized / Powder Coated |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″-9/16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/8″-1-1/4″ , 1-1/4″-1-3/8″ , 1-3/8″-1-1/2″ , 5/8″ , 3/4″ , 1-7/8″-2″ , 2-1/4″ |
| Origin | China |

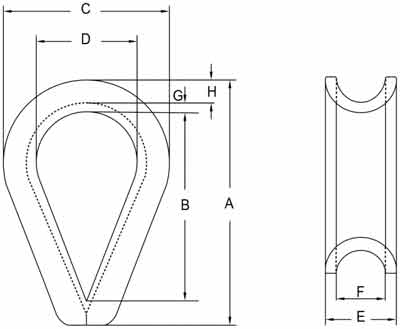

| Rope Dia. (in) | Weight/100 (lbs) | Dimensions (in) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/4 | 6.5 | 2.19 | 1.62 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 |
| 5/16 | 11.8 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.3 |
| 3/8 | 21.6 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 |
| 7/16 | 34.7 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 |
| 1/2 – 9/16 | 51 | 3.62 | 2.75 | 2.75 | 1.5 | 0.89 | 0.59 | 0.15 | 0.48 |
| 5/8 | 75.7 | 4.25 | 3.25 | 3.12 | 1.75 | 1 | 0.66 | 0.16 | 0.53 |
| 3/4 | 158.1 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.69 |
| 7/8 | 177.8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 |
| 1 | 313.9 | 6.12 | 4.5 | 4.75 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
| 1-1/8-1-1/4 | 400 | 7 | 5.12 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.25 |
| 1-1/4-1-3/8 | 811 | 9.08 | 6.5 | 6.81 | 3.5 | 2.19 | 1.44 | 0.37 | 1.29 |
| 1-3/8-1-1/2 | 1294.8 | 9 | 6.25 | 7.12 | 3.5 | 2.56 | 1.56 | 0.5 | 1.31 |
| 1-5/8 | 1700 | 11.25 | 8 | 8.12 | 4 | 2.72 | 1.72 | 0.5 | 1.38 |
| 1-3/4 | 1775 | 12.19 | 9 | 8.5 | 4.5 | 2.84 | 1.84 | 0.5 | 1.5 |
| 1-7/8 – 2 | 2775 | 15.12 | 12 | 10.38 | 6 | 3.09 | 2.09 | 0.5 | 1.69 |
| 2-1/4 | 3950 | 17.5 | 14 | 11.88 | 7 | 3.62 | 2.38 | 0.62 | 1.82 |
