Wire Rope Thimble Galvanized STG Type.
It is made of super carbon steel.
Tube thimble is much stronger than standard thimble and offers much better protection for the eye of the winch line.
Compatible with sleeve or wire rope clip, Wire Rope Thimble Galvanized STG Type extends the working life of cable or wire rope by protecting against everyday wear.
Various sizes are available.
| Material | Super Carbon Steel |
| Processing | Machining / Stamping |
| Surface Finished | Zinc Plated , Hot Dip Galvanized , Powder Coated |
| Size-Wire | 12-10mm , 15-12mm , 17-14mm , 19-16mm , 22-18mm , 25-22mm , 28-24mm , 30-26mm , 35-32mm , 45-38mm , 50-44mm |
| Origin | China |

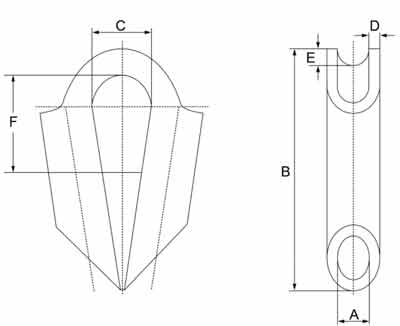

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) | Rope Diameter (mm) |
| 12 | 95 | 23 | 4 | 8 | 48 | 0.25 | 10 |
| 15 | 109 | 27 | 5 | 10 | 49 | 0.42 | 12 |
| 17 | 115 | 27 | 5 | 10 | 49 | 0.5 | 14 |
| 19 | 125 | 32 | 5 | 12 | 43 | 0.6 | 16 |
| 22 | 140 | 35 | 5 | 15 | 50 | 0.75 | 18 |
| 25 | 158 | 45 | 6.3 | 16 | 59 | 1.23 | 22 |
| 28 | 176 | 45 | 7 | 16 | 61 | 1.54 | 24 |
| 30 | 195 | 47 | 7 | 18 | 78 | 1.82 | 26 |
| 35 | 210 | 60 | 7 | 22 | 93 | 2.4 | 32 |
| 45 | 253 | 70 | 7 | 27 | 94 | 3.3 | 38 |
| 50 | 280 | 75 | 7 | 28 | 96 | 4.06 | 44 |
