Description:
Lever Chain Load Binder US Type.
Load binder lever type is great for securing loads- equipment or cargo.
It provides more control in binding and releasing without extra tools. The handle closes down away from the load with more leverage.
Made from high quality alloy steel galvanized and powder coating on surface.
Features:
*Drop Forged, Heat Treated for Extra Strength.
*General purpose use in securing loads with equipment or machinery.
*Minimum Breaking Loading: 3.5 Times to WLL
*Finishing: Powder Coated or Electric Galv.
*Material: Good quality alloy steel.

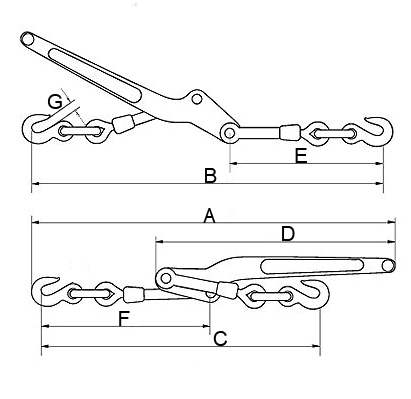

Lever Chain Load Binder, Load Binder Lever Type— Specification
| Size | Min-Max Chain | Working Load limit | Proof load | Ultimate Load | Weight Each | Handle Length | Dimensions (in) | ||||||
| (in) | (lbs) | (lbs) | (lbs) | (lbs) | (in) | A | B | C | D | E | F | G | |
| 5/16″-3/8″ | 5/16-3/8 | 5400 | 10800 | 19000 | 8.56 | 15.43 | 25.2 | 25.2 | 21.46 | 15.55 | 12.2 | 12.2 | 0.47 |
| 3/8″-1/2″ | 3/8-1/2 | 9200 | 18400 | 33000 | 12.38 | 17.24 | 28.15 | 28.7 | 24.61 | 17.52 | 13.58 | 13.58 | 0.59 |
| 1/4″-5/16″ | 1/4-5/16 | 2600 | 5200 | 9200 | 3.6 | 11.42 | 20.66 | 18.7 | 15.35 | 11.42 | 8.85 | 8.85 | 0.35 |
| 1/2″-5/8″ | 1/2-5/8 | 11000 | 22000 | 440000 | 19.7 | 21 | 33.86 | 30.12 | 25.78 | 20.87 | 14.37 | 14.37 | 0.74 |
