Description:
BSEN12195-3 Ratchet Load Binder.
It is used for easy and efficient tightening of chain used for lashing purposes.
Ratchet Load Binder is fitted with reinforced hooks and made from high quality alloy steel with painted finish surface.
Features:
*Drop forged alloy steel.
*Painted finish surface.
*Heat treated & tempered for extra strength.
*Minimum breaking load is 3.5 times the lashing capacity.
*Marked with size, lashing capacity and manufacturer mark.

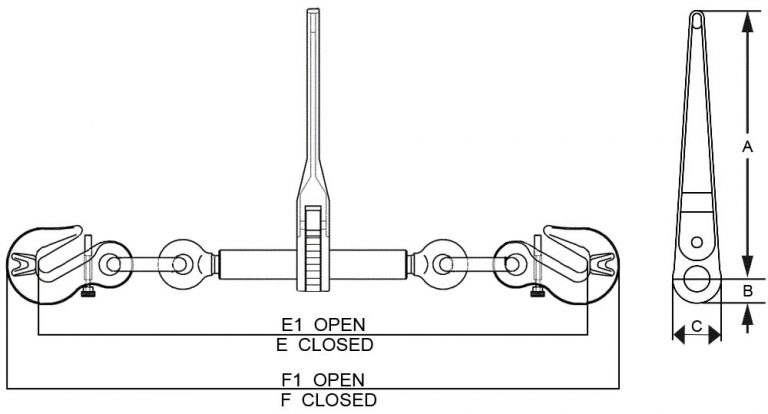

Ratchet Load Binder （BSEN12195-3)— Specification:
| Size | Chain Dia.(mm) | Working Load limit | Proof load | Breaking load | Weight Each | Handle Length | Take Up | Dimensions (in) | |||||||
| (lbs) | (lbs) | (lbs) | (lbs) | (in) | (in) | A | B | C | E | E1 | F | F1 | G | ||
| 6mm | 6mm | 2200 | 4400 | 7800 | 3.52 | 7.16 | 4.65 | 7.16 | 0.89 | 1.77 | 17.4 | 22 | 19.2 | 23.8 | 0.4 |
| 8mm | 8mm | 5400 | 10800 | 19000 | 10.5 | 13.42 | 8 | 13.92 | 1.3 | 2.6 | 23.78 | 31.8 | 26.1 | 34.1 | 0.5 |
| 10mm | 10mm | 9200 | 18400 | 33000 | 12.2 | 13.92 | 8 | 13.92 | 1.3 | 2.6 | 23.82 | 31.8 | 26.9 | 34.9 | 0.6 |
| 13mm | 13mm | 13000 | 26000 | 46000 | 14.38 | 13.92 | 8 | 13.92 | 1.3 | 2.6 | 25.9 | 33.9 | 29.6 | 34.6 | 0.7 |
| 16mm | 16mm | 24000 | 48000 | 72000 | 19 | 13.92 | 10 | 13.92 | 1.3 | 2.6 | 26.5 | 34.8 | 31.6 | 39.9 | 0.9 |
