Description:
Ratchet Chain Load Binder US Type.
Ratchet Chain Load Binder is easy and quick to secure and tie down the loads.
Made from high quality alloy steel galvanized and powder coating on surface.
Widely used for the binding of container, vehicle and other goods in the process of shipping & transportation.
Features:
*Drop forged alloy steel.
*Heat treated & tempered for extra strength.
*Fitted with grab hooks for easy connection.
*Finishing: Powder coated or Electric galv.
*Minimum breaking loading: 3.5 times to WLL
*Packing: Carton then Steel pallet

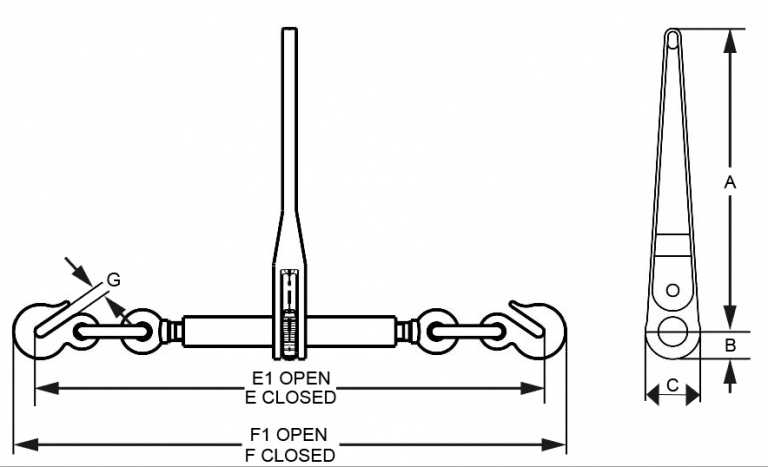

Ratchet Chain Load Binder US Type— Specification:
| Size | Min-Max Chain Size | WLL | Proof Load | Breaking Load | Weight | Handle Length | Dimensions (in) | ||||||
| (in) | (lbs) | (lbs) | (lbs) | (lbs) | (in) | A | B | C | E | E1 | F | G | |
| 1/4″-5/16″ | 1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 0.35 |
| 5/16-3/8 | 5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.42 | 13.92 | 1.3 | 2.6 | 22.46 | 30.64 | 25.24 | 0.51 |
| 3/8-1/2 | 3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 0.59 |
| 1/2-5/8 | 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 0.74 |
