G80 Chain Connecting Link US type.
Also called as G80 hammerlock US Type.
This type link is with high strength, low weight and durability.
G80 Connecting Link US type is designed for attaching hook, master link and other fittings to Grade 80 alloy steel chain.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Alloy Steel |
| Note | Ultimate load is 4 times the Working Load Limit |
| Processing | Drop Forged, Quenched and Tempered |
| Surface Finished | Powder Coated |
| Size | 1/4″ , 5/16″ , 3/8″，1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/4″ |
| Origin | China |

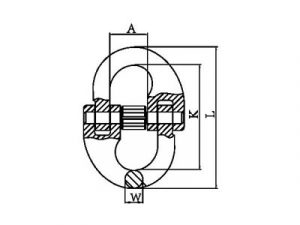

| WEIGHT/lbs | WLL/lbs | BREAKING LOAD/lbs | A±1.5 | L±2.5 | K±2 | W±l | H±1 | C±0.2 | D±0.3 |
| 0.286 | 3500 | 14000 | 16.5 | 67 | 51 | 8 | 13 | 4 | 4 |
| 0.32 | 4500 | 18000 | 17 | 78.5 | 58.5 | 10 | 14.5 | 6 | 6.6 |
| 0.73 | 7100 | 28400 | 22 | 87.6 | 63.6 | 12 | 17 | 6.2 | 8.1 |
| 1.67 | 12000 | 48000 | 28.5 | 115.5 | 85.5 | 15 | 21.6 | 7.8 | 7.8 |
| 2.86 | 18100 | 72400 | 33 | 143 | 106 | 18.5 | 26 | 9.5 | 10 |
| 5 | 28300 | 113200 | 41 | 162 | 116 | 23 | 32 | 12 | 13 |
| 7.5 | 34200 | 136800 | 50.5 | 188.5 | 136.5 | 26 | 38 | 13 | 15.5 |
| 11.03 | 47700 | 190800 | 57 | 214.5 | 152.5 | 31 | 44 | 15 | 16.5 |
| 20.38 | 72300 | 289200 | 65 | 265 | 188.7 | 38 | 54 | 20 | 20 |
