G80 Forged Master Oblong Link US Standard.
This master link is designed for both single and multiple leg slings.
The wide design allows attached slings to be properly spaced for a multiple leg lift.
It is a high quality lifting gear, made of superior alloy steel.
G80 oblong master link can be easily attached to hoist, crane, sling and wench directly or paired with a shackle as needed.
*Use Only Grade 80 attachments for overhead lifting.
| Technical Notes | U.S. Type (ASME B30.26 ) |
| Material | Superior Alloy Steel |
| Safety Factor | 4 : 1 |
| processing | All Size are Forged, Quenched and Tempered. |
| Surface Finished | Powder Coated |
| Origin | China |
| Tips | There will be pressing flat only on request. Use Only Grade 80 Attachments For Overhead Lifting. |

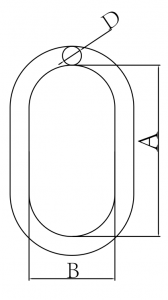

| SIZE (in) | WEIGHT (kg) | Chain | WLL 1 LEG(T) | WLL 2 LEG-45°(T) | WLL ROPE(T) | DIMENSION(mm) | ||
| A | B | D | ||||||
| 1/2″ | 0.36 | 1/4 | 1.5 | 2.12 | 3.4 | 127±6 | 63.5±5 | 13±1 |
| 5/16 | 2 | 2.8 | ||||||
| 5/8″ | 0.7 | 5/16 | 2 | 2.8 | 4 | 152±6 | 76±5 | 16±1 |
| 3/8 | 3.15 | – | ||||||
| 3/4″ | 0.93 | 3/8 | 3.15 | 4.25 | 5.6 | 140±6 | 70±5 | 19±1 |
| 7/8″ | 1.5 | 3/8 | 3.15 | 4.25 | 6.9 | 160±6 | 90±5 | 22±1 |
| 1/2 | 5.3 | – | ||||||
| 1″ | 2.1 | 1/2 | 5.3 | 7.5 | 11.8 | 178±6 | 89±5 | 25±1 |
| 5/8 | 8 | 11.2 | ||||||
| 1-1/4″ | 4.24 | 5/8 | 8 | 11.2 | 17.7 | 222±7 | 111±6 | 32±1/-2 |
| 3/4 | 11.2 | 16 | ||||||
| 1-1/2″ | 7.17 | 3/4 | 11.2 | 16 | 27.7 | 267±7 | 135±6 | 38±1/-2 |
| 7/8 | 15 | 21.2 | ||||||
| 1-3/4″ | 11.55 | 7/8 | 15 | 21.2 | 38.5 | 305±10 | 152±6 | 45±1/-2 |
| 1 | 21.2 | - | ||||||
| 2″ | 17.2 | 1 | 21.2 | 30 | 46.5 | 355±10 | 178±6 | 51±1/-2 |
| 11/4 | 31.5 | - | ||||||
| 2-1/4″ | 24.5 | 11/4 | 31.5 | 45 | 64.9 | 406±10 | 203±7 | 57±1/-2 |
| 2-1/2″ | 30.9 | - | - | - | 72.6 | 406±10 | 203±7 | 63±3 |
| 2-3/4″ | 39.5 | - | - | - | 98.4 | 406±10 | 241±7 | 70±3 |
| 3″ | 50.34 | - | - | - | 103 | 457±15 | 228±7 | 76±3 |
| 3-1/4″ | 65.68 | - | - | - | 119 | 508±15 | 254±7 | 82.5±3 |
| 3-1/2″ | 90.24 | - | - | - | 126 | 610±15 | 305±10 | 89±3 |
| 3-3/4″ | 89.27 | - | - | - | 152 | 508±15 | 254±7 | 95±3 |
| 4″ | 103.43 | - | - | - | 169 | 508±15 | 254±7 | 102±3 |
| 4-1/4″ | 137 | - | - | - | 160 | 610±15 | 305±7 | 108±3 |
| 4-1/2″ | 156 | - | - | - | 163 | 711±18 | 356±7 | 114±3 |
| 4-3/4″ | 198 | - | - | - | 176 | 711±18 | 356±7 | 121±4 |
| 5″ | 234 | - | - | - | 179 | 762±20 | - | - |
