Grade 80 Connecting Link European Type.
G80 European type connecting link has the advantages of small volume, light weight and high strength.
It is easy to connect & disconnect, widely used to connect Oblong link, Chain, Hook and other components of chain sling.
| Technical Notes | European Type (EN1677) |
| Material | Super Alloy Steel |
| Processing | Forged, Quenched and Tempered. |
| Surface Finished | Powder Coated |
| Size | 6mm , 7mm , 7/8mm，8mm , 10mm , 13mm , 16mm , 18mm ,20mm , 22mm , 26mm , 32mm |
| Origin | China |

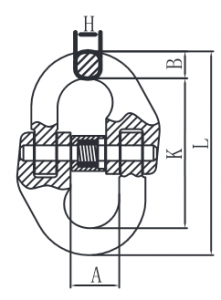

| Size(mm) | Weight (kg) | WLL (t) | Breaking Load (t) | A±1.5 | B±1 | L±2.5 | K±2 | H±1 |
| 6 | 0.08 | 1.12 | 4.48 | 15 | 7.5 | 58 | 42 | 7 |
| 7 | 0.145 | 1.5 | 6 | 19 | 8.5 | 71.8 | 54.8 | 8.5 |
| 7/8 | 0.146 | 2 | 8 | 18 | 9.5 | 79.5 | 60.5 | 8.5 |
| 8 | 0.16 | 2 | 8 | 19.5 | 9.5 | 79.5 | 60.5 | 8.5 |
| 10 | 0.30 | 3.15 | 12.6 | 25 | 12 | 90.5 | 68 | 11.5 |
| 13 | 0.65 | 5.3 | 21.2 | 29 | 15 | 117 | 87 | 15 |
| 16 | 1.15 | 8 | 32 | 34.5 | 19.8 | 148 | 108.4 | 19.8 |
| 18 | 1.84 | 10 | 40 | 38 | 21 | 154 | 112 | 21 |
| 20 | 2.1 | 12.5 | 50 | 41 | 24 | 169.5 | 121.5 | 24 |
| 22 | 2.87 | 15 | 60 | 48 | 26 | 193.5 | 141.5 | 26 |
| 26 | 4.5 | 21.2 | 84.8 | 57.5 | 31 | 220 | 158 | 30 |
| 32 | 8.21 | 31.5 | 126 | 67 | 38 | 281 | 205 | 37 |
