G80 Master Link Assembly European Type EN1677-4.
Also called as G80 Master Link Assembly DIN5688-3.
Grade 80 Alloy Steel Master Link Assembly is used for general lifting adaptable for straight pull, vertical hitch etc.
| Technical Notes | European Type (EN1677-4 / DIN5688-3) |
| Material | Alloy Steel |
| Safety Factor | Ultimate load is 4 times the Working Load Limit |
| Surface Finished | Powder Coated |
| Size | 6mm , 7mm , 8mm , 10mm , 13mm , 16mm , 18mm ,20mm , 22mm , 26mm , 28mm |
| Origin | China |

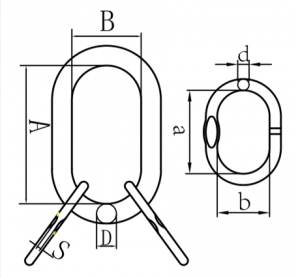

| G80 EN818-2 CHAIN | WEIGHT (KG) | WLL (T) | DIMENSION(MM) | |||||
| FOR 3 or 4 LEG SLING | A | B | D | a | b | d | ||
| 6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 |
| 7 | 1.24 | 3.15 | 135 | 75 | 18 | 50 | 38 | 13 |
| 8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 |
| 10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 |
| 13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 |
| 16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 |
| 18 | 18.9 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 |
| 20 | 22.6 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 |
| 22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 |
| 26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 |
| 28 | 47 | 50 | 130 | 220 | 63 | 180 | 100 | 45 |
