Grade 100 Connecting Link.
G100 Connecting Link is commonly used in conjunction with head ring, chain sling and other type slings.
It is tested to ensure the highest level of quality and safety assurance.
| Technical Notes | Conform to European Type (EN1677) |
| Material | Superior Alloy Steel |
| Safety Factor | Ultimate load is 4 times the Working Load Limit |
| Processing | Drop Forged+Quenched and Tempered |
| Surface Finished | Powder Coated |
| Origin | China |

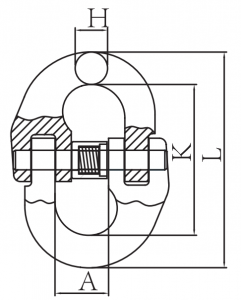

| Weight (kg) | WLL (t) | Breaking load (t) | H±1 | A±1.5 | K±2 | L±2.5 |
| 0.08 | 1.4 | 5.6 | 7.6 | 14 | 44.5 | 60 |
| 0.18 | 2.5 | 10 | 10 | 18.5 | 61.5 | 84.5 |
| 0.34 | 4 | 16 | 12.6 | 23 | 72 | 97.2 |
| 0.68 | 6.7 | 26.8 | 16.8 | 27.5 | 89 | 127 |
| 1.22 | 10 | 40 | 21 | 33.5 | 103 | 145 |
| 2.13 | 16 | 64 | 24.5 | 42 | 116 | 175 |
| 3 | 19 | 76 | 27 | 48 | 135 | 193 |
| 5.15 | 26.5 | 106 | 32 | 61 | 164 | 228 |
| 9.5 | 39.3 | 157.2 | 40 | 80 | 194 | 274 |
