Oblong Master Link Grade 100.
Grade 100 master link is with the extra width inside thus can be a a better fit on larger crane hook and is capable of handling wire rope, synthetic sling and chain.
It is one of the ideal rigging hardwares for heavy-duty workload.
| Technical Notes | European Type |
| Material | Forged Superior Alloy Steel |
| Safety Factor | Ultimate load is 4 times the Working Load Limit |
| Processing | Drop Forged, Quenched and Tempered Pressing flat only on request |
| Surface Finished | Powder Coated |
| Size | 14mm , 17mm , 22mm , 28mm , 34mm , 42mm |
| Origin | China |

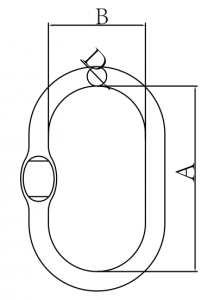

| G100 Chain Diameter(mm) | Weight (kg) | WLL(T) | Dimension (mm) | |||
| 1 Leg Sling | 2 Leg Sling | A | B | D | ||
| 6/8 | 6 | 0.4 | 2.5 | 120 | 70 | 14 |
| 10 | 8 | 0.8 | 4 | 140 | 80 | 17 |
| 13 | 10 | 1.5 | 7.5 | 160 | 95 | 22 |
| 16 | 13 | 2.5 | 10 | 190 | 110 | 28 |
| 19/20 | 16 | 5.2 | 17 | 240 | 140 | 34 |
| 22/26 | 20/22 | 7.7 | 28 | 250 | 150 | 42 |
