Stainless Steel Drop Forged Hammerlock Chain Connector US Type.
Drop forged stainless steel chain connector is designed for attaching hook, master link and other fittings.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
| Technical Notes | Conform to US Type |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Drop Forged |
| Surface Finished | Polishing |
| Size | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/4″ |

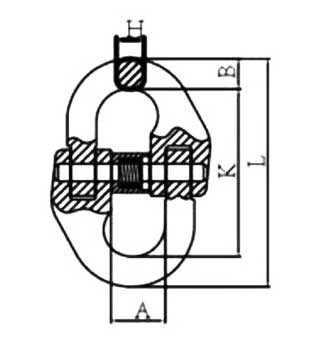

| WEIGHT/lbs | WORKING LOAD LIMIT/lbs | BREAKING LOAD/lbs | A±1.5 | L±2.5 | K±2 | W±l | H±1 | C±0.2 | D±0.3 |
| 0.286 | 3500 | 14000 | 16.5 | 67 | 51 | 8 | 13 | 4 | 4 |
| 0.32 | 4500 | 18000 | 17 | 78.5 | 58.5 | 10 | 14.5 | 6 | 6.6 |
| 0.73 | 7100 | 28400 | 22 | 87.6 | 63.6 | 12 | 17 | 6.2 | 8.1 |
| 1.67 | 12000 | 48000 | 28.5 | 115.5 | 85.5 | 15 | 21.6 | 7.8 | 7.8 |
| 2.86 | 18100 | 72400 | 33 | 143 | 106 | 18.5 | 26 | 9.5 | 10 |
| 5 | 28300 | 113200 | 41 | 162 | 116 | 23 | 32 | 12 | 13 |
| 7.5 | 34200 | 136800 | 50.5 | 188.5 | 136.5 | 26 | 38 | 13 | 15.5 |
| 11.03 | 47700 | 190800 | 57 | 214.5 | 152.5 | 31 | 44 | 15 | 16.5 |
| 20.38 | 72300 | 289200 | 65 | 265 | 188.7 | 38 | 54 | 20 | 20 |
