Master Link Sub Assembly Grade 100.
Made of superior alloy steel, it is mainly used in the lifting gear industry for chain sling assembly and suitable for 3 & 4 leg chain slings.
| Technical Notes | European Type |
| Material | Superior Alloy Steel |
| Safety Factor | Ultimate load is 4 times the Working Load Limit |
| Processing | Body : Drop Forged Sub-Assembly : Welded,Quenched and Tempered Pressing flat only on request |
| Surface Finished | Powder Coated |
| Size(Master link-Assembly) | 19-13mm , 23-16.5mm , 27-19mm , 33-23mm , 36-27mm , 50-33mm , 50-36mm |
| Origin | China |

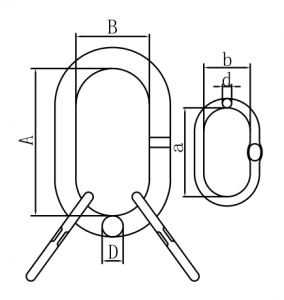

| Weight (kg) | WLL (t) | Breaking load (t) | Dimension (mm) | |||||
| A | B | D | a | b | d | |||
| 1.8 | 3.5 | 14 | 150 | 90 | 19 | 120 | 70 | 14 |
| 3.0 | 5 | 20 | 160 | 95 | 22 | 140 | 80 | 17 |
| 6.5 | 11.5 | 46 | 200 | 120 | 30 | 160 | 95 | 22 |
| 15 | 17 | 68 | 250 | 150 | 40 | 200 | 120 | 30 |
| 23 | 28 | 112 | 300 | 200 | 50 | 200 | 120 | 32 |
