G100 Master Link Sub Assembly EN1677-4.
It is designed to use with chain or wire rope, 3 or 4 leg sling etc.
Each master link assembly is tested to ensure the highest level of quality and safety assurance.
| Technical Notes | European Type (EN1677-4) |
| Material | Forged Superior Alloy Steel |
| Safety Factor | Ultimate load is 4 times the Working Load Limit |
| Processing | Body : Drop Forged Sub-Assembly : Welded,Quenched and Tempered Pressing flat only on request |
| Surface Finished | Powder Coated |
| Size(Master link-Assembly) | 19-13mm , 23-16.5mm , 27-19mm , 33-23mm , 36-27mm , 50-33mm , 50-36mm |
| Origin | China |

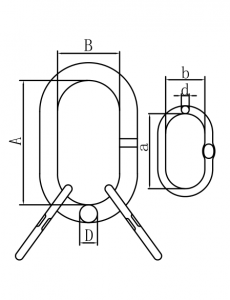

| G100 Chain Diameter(mm) | Weight (kg) | WLL(t) | Dimension (mm) | |||||
| For 3/4 Leg Sling | A | B | D | a | b | d | ||
| 6mm | 1.3 | 3 | 135 | 75 | 19 | 84 | 25 | 13 |
| 8mm | 2.33 | 5.3 | 160 | 90 | 23 | 70 | 35 | 16.5 |
| 10mm | 3.7 | 8 | 180 | 100 | 27 | 85 | 40 | 19 |
| 13mm | 6.5 | 14 | 200 | 110 | 33 | 115 | 50 | 23 |
| 16mm | 10.1 | 21.2 | 260 | 140 | 36 | 140 | 65 | 27 |
| 19/20mm | 22.8 | 33.6 | 350 | 190 | 50 | 150 | 70 | 33 |
| 22mm | 26 | 33.9 | 350 | 190 | 50 | 180 | 100 | 36 |
