G-402 Forged Chain Swivel US Type.
G-402 Forged Chain Swivel is usually fitted between the anchor and the chain cable to prevent the chain cable from twisting and kinking.
G-401 and G-403 chain swivel US Type are also available.
| Material | Superior Carbon Steel (1045) regular swivel |
| Processing | Drop Forged + Welded +Heat Treated |
| Surface Finished | Hot Dip Galvanized / Electric Galvanized |
| Safety Factor | 5 : 1 |
| Size | 1/4” , 5/16” , 3/8” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/4” , 1-1/2” regular swivel |

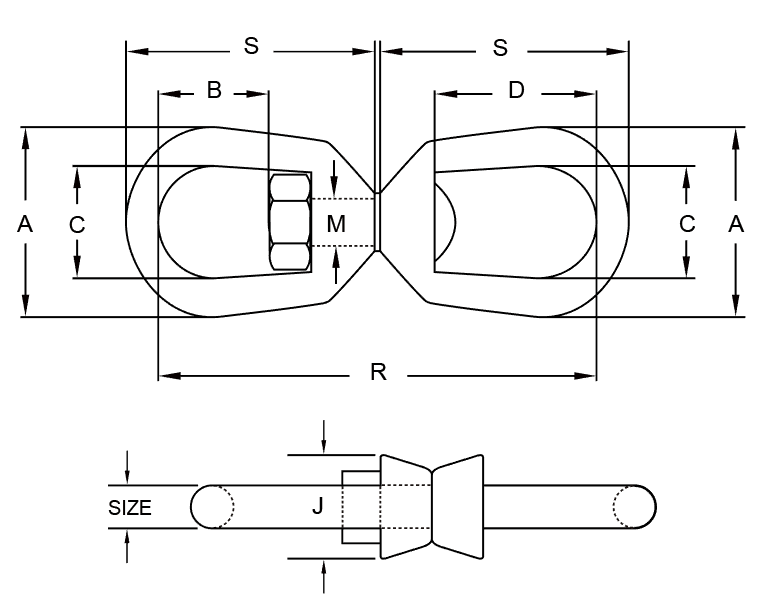

| Size (in) | W.L.L. (lbs) | Weight each | Dimensions (in) | |||||||
| (lbs) | A | B | C | D | J | M | R | S | ||
| 1/4" | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 |
| 5/16" | 1250 | 0.39 | 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 |
| 3/8" | 2250 | 0.71 | 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 |
| 1/2" | 3600 | 1.32 | 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 |
| 5/8" | 5200 | 2.49 | 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 |
| 3/4" | 7200 | 4.02 | 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 |
| 7/8" | 10000 | 6.25 | 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 |
| 1" | 12500 | 8.95 | 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 |
| 1-1/4" | 18000 | 16.37 | 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.5 | 11.44 | 6.75 |
| 1-1/2" | 45200 | 45.79 | 7.09 | 3.88 | 4.09 | 3.88 | 3.75 | 2.25 | 16.69 | 9.91 |
