Forged G-403 Jaw End Swivel.
Forged G-403 Jaw End Swivel reduces the risk of chain or rope knotting in marine & rigging industry.
Perfect for a wide range of suspension & tensioning applications requiring 360-degree rotation, improving alignment & reducing stress.
| Material | Super Carbon Steel |
| Surface Finished | Galvanized |
| Processing | Drop Forged, Quenched & Tempered |
| Safety Factor | 5:1 |
| Size | 1/4″,5/16″,3/8″,1/2″,5/8″,3/4″,7/8″,1″,1-1/4″,1-1/2″ |

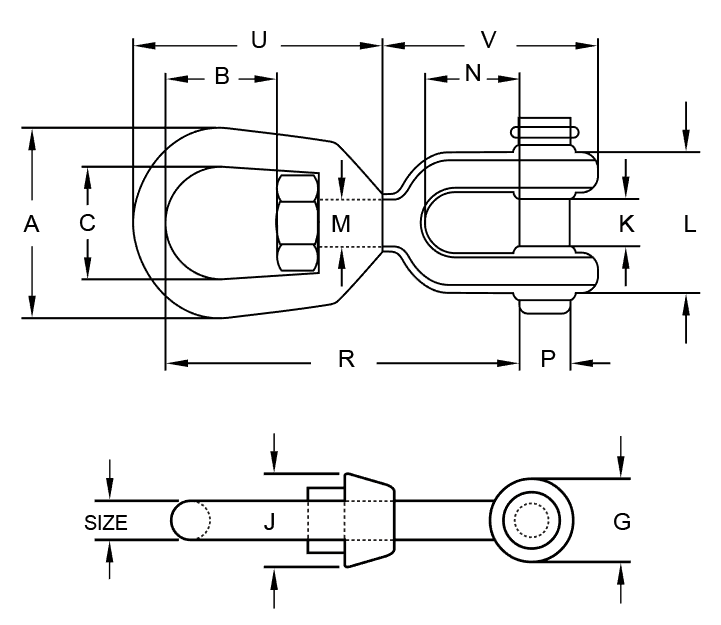

| Size | WLL | Weight each | Dimensions (in) | ||||||||||||
| (in) | (lbs) | (lbs) | A | B | C | G | J | K | L | M | N | P | R | U | V |
| 1/4” | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 1.69 | 1.69 |
| 5/16” | 1250 | 0.34 | 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 2.06 | 1.81 |
| 3/8” | 2250 | 0.66 | 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 2.5 | 2.25 |
| 1/2″ | 3600 | 1.34 | 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 3.19 | 2.88 |
| 5/8″ | 5200 | 2.48 | 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 3.88 | 3.44 |
| 3/4″ | 7200 | 3.88 | 3.5 | 1.75 | 2 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 4.31 | 4 |
| 7/8″ | 10000 | 5.87 | 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 5 | 4.53 |
| 1″ | 12500 | 9.84 | 4.5 | 2.31 | 2.5 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 5.75 | 5.94 |
| 1-1/4″ | 18000 | 15.75 | 5.69 | 2.69 | 3.13 | 3.13 | 3 | 2.06 | 4.31 | 1.63 | 2.81 | 1.38 | 9.75 | 7.06 | 6.38 |
| 1-1/2″ | 45200 | 54.75 | 7 | 3.88 | 4 | 5.63 | 4 | 2.88 | 6 | 2.25 | 4.44 | 2.25 | 14.25 | 10 | 10.84 |
