Chain Swivel Drop Forged Mild Steel.
Also called as trawling swivel or swivel shackle.
Chain Swivel Drop Forged Mild Steel, made of superior mild steel, is ideal for marine, fishing and trawling gear applications.
| Material | Superior Mild Steel |
| Processing | Drop Forged |
| Surface Finished | Powder Coated , Electric Galvanized |
| Size | 22mm , 25mm , 28mm , 32mm |

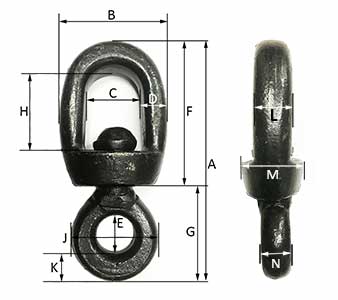

| SIZE | A | B | C | D | E | F | G | H | J | K | L | M | N | Weight | WLL(SF: 4:1) |
| MM | KG | T | |||||||||||||
| 22mm | 195 | 90 | 47.8 | 21 | 32.3 | 112 | 83 | 65 | 70 | 21 | 19.6 | 47 | 21.6 | 1.55 | 4 |
| 25mm | 215 | 100 | 51.2 | 24 | 32.5 | 131 | 84 | 75 | 75 | 21 | 24 | 54.5 | 23.6 | 2.24 | 5 |
| 28mm | 230 | 106 | 55.5 | 25.5 | 36 | 138 | 92 | 86 | 81 | 24 | 28 | 59 | 27.4 | 2.85 | 6 |
| 32mm | 260 | 117 | 60 | 28.2 | 38.5 | 157 | 103 | 92 | 91 | 28 | 36 | 68 | 30 | 4.49 | 8 |
