JIS Eye Swivel Single Eye Type.
JIS Eye Swivel Single Eye Type is ideal for marine, fishing and trawling gear applications.
| Technical Notes | Conform to JIS Standard |
| Material | Superior Carbon Steel |
| Processing | Drop Forged |
| Surface Finished | Hot Dip Galvanized, Electric Galvanized |
| Size | 13mm , 16mm , 19mm , 22mm,29mm |
| WLL | 1T – 5T |

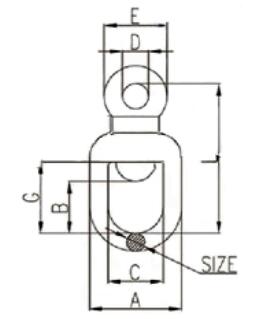

| Size | Weight | WLL | Dimension | ||||||
| mm | kg | ton | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | L (mm) |
| 13 | 0.5 | 1 | 60 | 35 | 36 | 17 | 41 | 48 | 100.5 |
| 16 | 0.94 | 1.5 | 72 | 43 | 40 | 23 | 55 | 60 | 124 |
| 19 | 1.46 | 2.5 | 82 | 45 | 45 | 26 | 64 | 66 | 142 |
| 22 | 2.21 | 5 | 93 | 53 | 49 | 29 | 73 | 75 | 170 |
| 29 | 4.4 | 3 | 116 | 70 | 58 | 38 | 96 | – | 196 |
