G-401 Forged Chain Swivel Eye & Eye.
G-401 Forged Chain Swivel Eye & Eye is ideal for connecting different chains, wire rope, or fibrous rope.
This US type chain swivel is ideal for lifting & rigging applications where twists in chain is unwanted.
This swivel is used to relieve stress caused by twisting and knotting while being pull taut.
| Material | Superior Carbon Steel (1045) |
| Processing | Drop Forged + Welded +Heat Treated |
| Surface Finished | Hot Dip Galvanized / Electric Galvanized |
| Safety Factor | 5 : 1 |
| Origin | China |

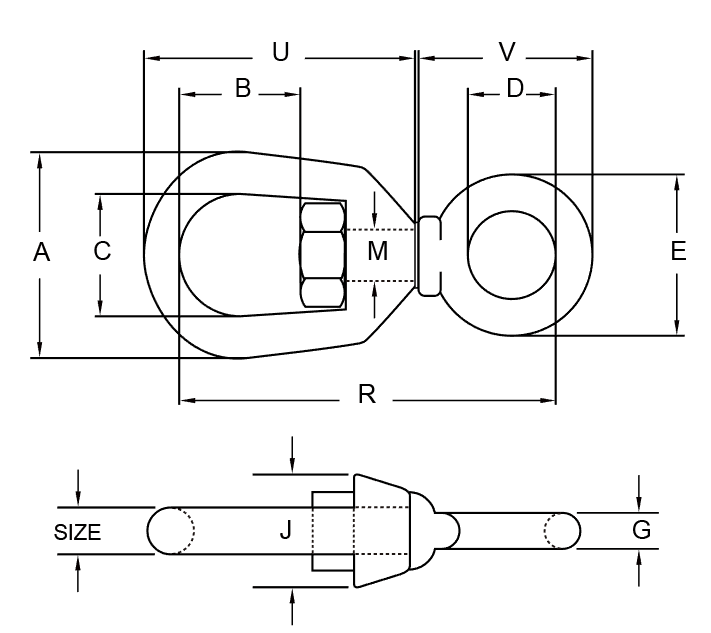

| Size | W.L.L. | Weight | Dimensions (in) | ||||||||||
| (in) | (lbs) | (lbs) | A | B | C | D | E | G | J | M | R | U | V |
| 1/4″ | 850 | 0.13 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 |
| 5/16″ | 1250 | 0.25 | 1.63 | 0.81 | 1 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 |
| 3/8″ | 2250 | 0.54 | 2 | 0.94 | 1.25 | 1 | 1.75 | 0.38 | 1 | 0.5 | 3.44 | 2.5 | 1.88 |
| 1/2″ | 3600 | 1.12 | 2.5 | 1.31 | 1.5 | 1.25 | 2.25 | 0.5 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 |
| 5/8″ | 5200 | 2.09 | 3 | 1.56 | 1.75 | 1.5 | 2.75 | 0.62 | 1.5 | 0.75 | 5.13 | 3.88 | 2.94 |
| 3/4″ | 7200 | 3.09 | 3.5 | 1.75 | 2 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 |
