Stainless Steel Carbine Snap Hook Din5299 Form C.
It is normally for use in the food and beverage industry, also ideal for marine and industrial rigging applications.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
*Not suitable for overhead lifting.
| Technical Notes | Conform to DIN5299 Form C |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Stamping / Machining |
| Surface Finished | Highly Polishing / Electrophoretic coating |
| Size | 4mm , 5mm , 6mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm |
| Tips | Not for overhead lifting |
| Origin | China |

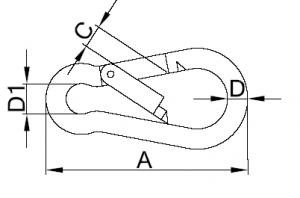

| Size(mm) | D(mm) | A(mm) | C(mm) | D1(mm) | WLL(lbs) |
| 4×40 | 4 | 40 | 6 | 6.5 | 80 |
| 5×50 | 5 | 50 | 7 | 8 | 100 |
| 6×60 | 6 | 60 | 8 | 9 | 140 |
| 7×70 | 7 | 70 | 8 | 10.5 | 200 |
| 8×80 | 8 | 80 | 9 | 12 | 250 |
| 9×90 | 9 | 90 | 10 | 13 | 280 |
| 10×100 | 10 | 100 | 12 | 15 | 400 |
| 11×120 | 11 | 120 | 16 | 18 | 500 |
| 12×140 | 12 | 140 | 19 | 20 | 600 |
| 13×160 | 13 | 160 | 25 | 22 | 700 |
| 14×180 | 14 | 180 | 35 | 22 | 900 |
