Carbine Snap Hook w/Screw Nut & Eyelet.
The most outstanding advantage of Carbine Snap Hook w/Screw Nut & Eyelet is the solid and safety structure via adding a screw and an eyelet.
It is widely used for sports, camping, climbing, hiking etc. applications.
| Technical Notes | Carbine Snap Hook w/Screw Nut & Eyelet |
| Material | Carbon steel |
| Finish | Zinc plated, Hot dipped galvanized |
| Size | 5*50mm -13*160mm |

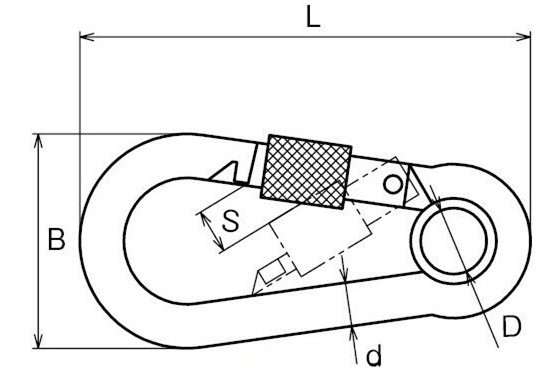

Specification- Carbine Snap Hook w/Screw Nut & Eyelet
| Size | B | D | S | d | L | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | lbs | kg/100pcs |
| 5×50 | 25 | 5 | 6 | 5 | 50 | 150 | 2.1 |
| 6×60 | 30 | 5 | 7 | 6 | 60 | 250 | 3.22 |
| 7×70 | 35 | 7 | 7.5 | 7 | 70 | 320 | 5.04 |
| 8×80 | 40 | 10 | 8.5 | 8 | 80 | 400 | 7.7 |
| 9×90 | 45 | 10 | 9 | 9 | 90 | 500 | 9.9 |
| 10×100 | 45 | 13 | 10 | 10 | 100 | 650 | 16.2 |
| 11×120 | 45 | 13 | 16 | 11 | 120 | 700 | 22 |
| 12×140 | 45 | 15 | 18 | 12 | 140 | 800 | 28 |
| 13×160 | 45 | 17 | 25 | 13 | 160 | 1200 | 37 |
