DIN 5299C Carbine Spring Hook.
DIN 5299C Carbine Spring Hook is hard wearing and classically designed to suit the fast & quick attachment & detachment.
The high quality Zinc galvanized steel has excellent strength with superb rust resistance for outdoor use.
| Technical Notes | Conform to DIN Standard |
| Material | Carbon steel or Stainless steel 316/304 |
| Finish | Zinc plated, Hot dipped galvanized |
| Size | 4*40mm -15*200mm |

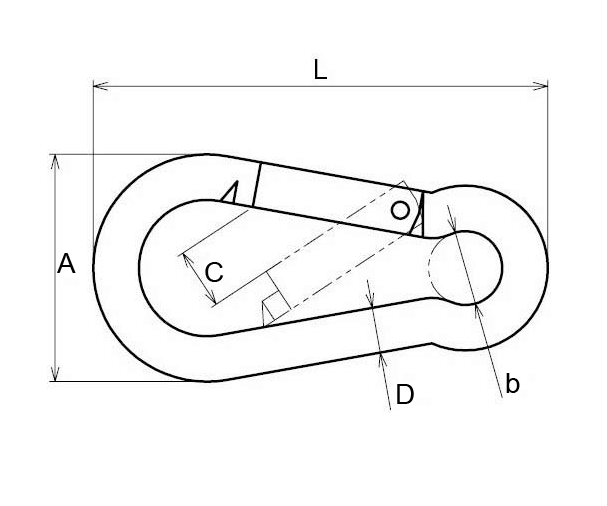

Specification- DIN 5299C Carbine Spring Hook
| Size | A | B | C | D | L | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | lbs | kg/100pcs |
| 4X40 | 20 | 6 | 6 | 4 | 40 | 100 | 0.8 |
| 5×50 | 25 | 8 | 7 | 5 | 50 | 160 | 1.6 |
| 6×60 | 30 | 9 | 7 | 6 | 60 | 260 | 2.8 |
| 7×70 | 35 | 10 | 10 | 7 | 70 | 335 | 4.5 |
| 8×80 | 40 | 12 | 11 | 8 | 80 | 400 | 6.3 |
| 9×90 | 45 | 12 | 11 | 9 | 90 | 500 | 9 |
| 10×100 | 50 | 15 | 12 | 10 | 100 | 650 | 12.5 |
| 11×120 | 57 | 18 | 19 | 11 | 120 | 700 | 19.2 |
| 12×140 | 67 | 20 | 20 | 12 | 140 | 800 | 25 |
| 13×160 | 74 | 22 | 29 | 13 | 160 | 1300 | 35 |
| 14×180 | 86 | 22 | 42 | 14 | 180 | 1600 | 45.5 |
| 15X200 | 90 | 26 | 42 | 15 | 200 | 1800 | 61.8 |
